DXF CAD Files ONLY – No Physical Product Included
Universal LS Engine Mounts – DXF Files

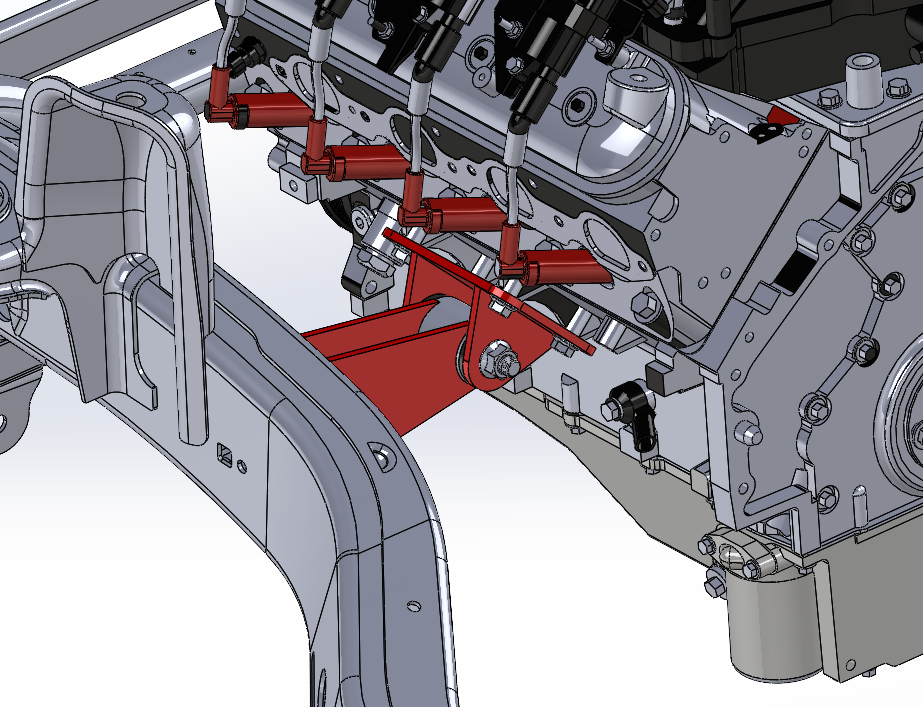

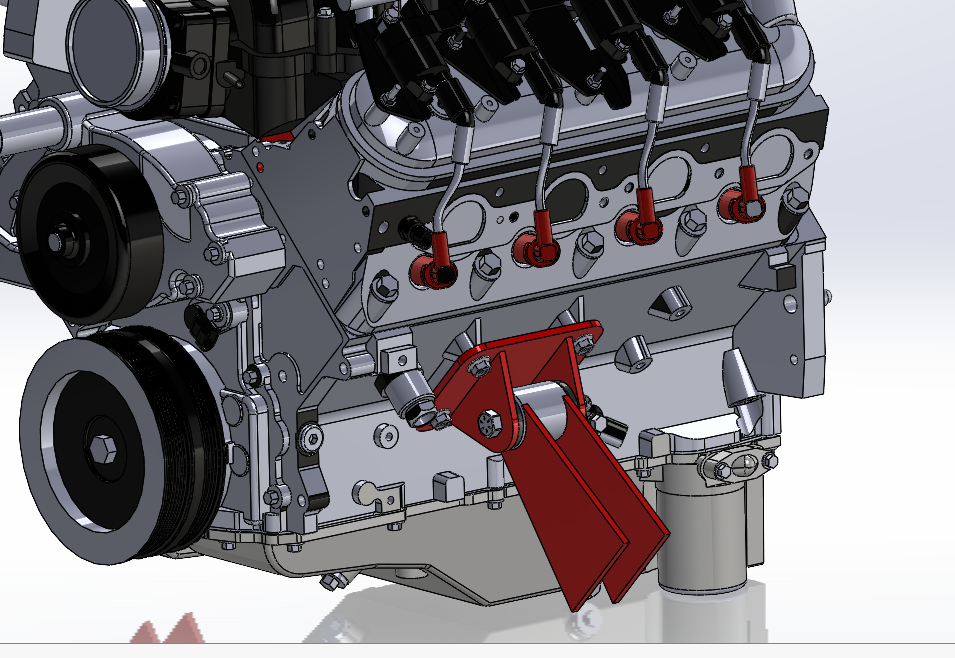

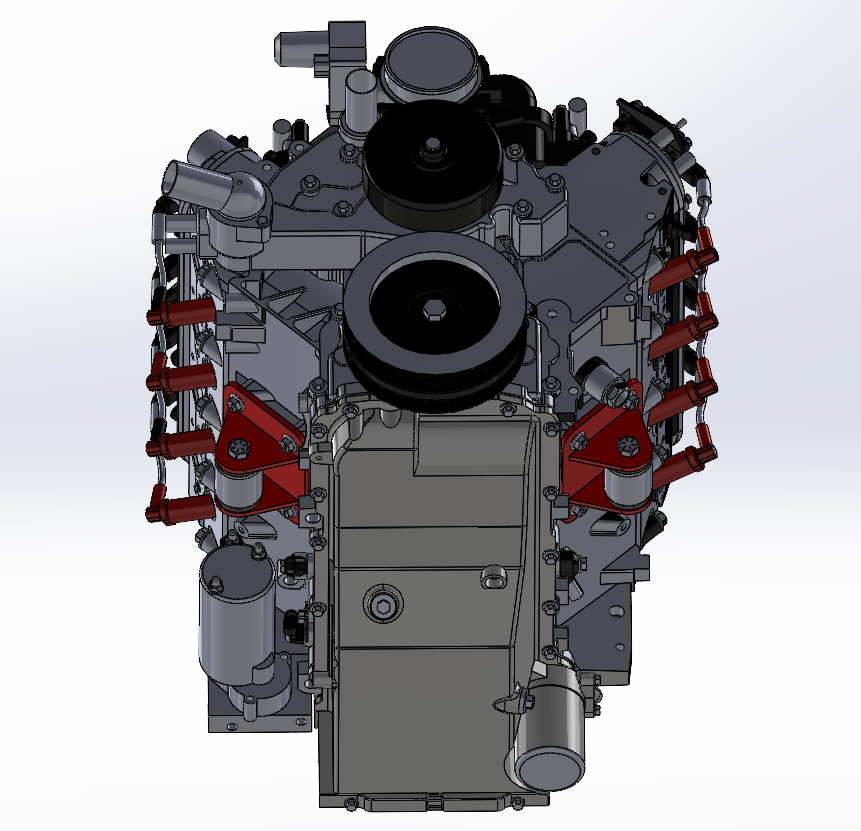

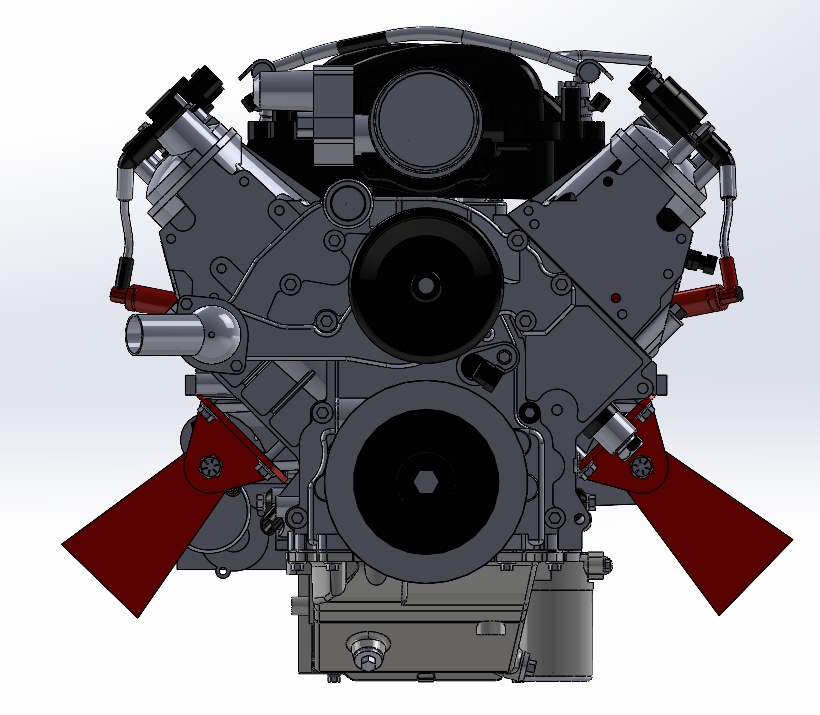

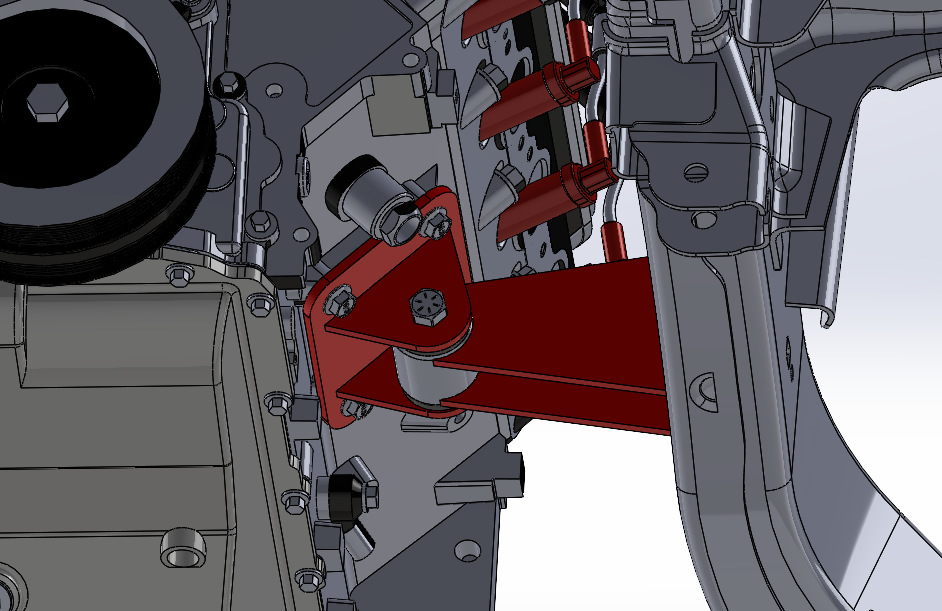

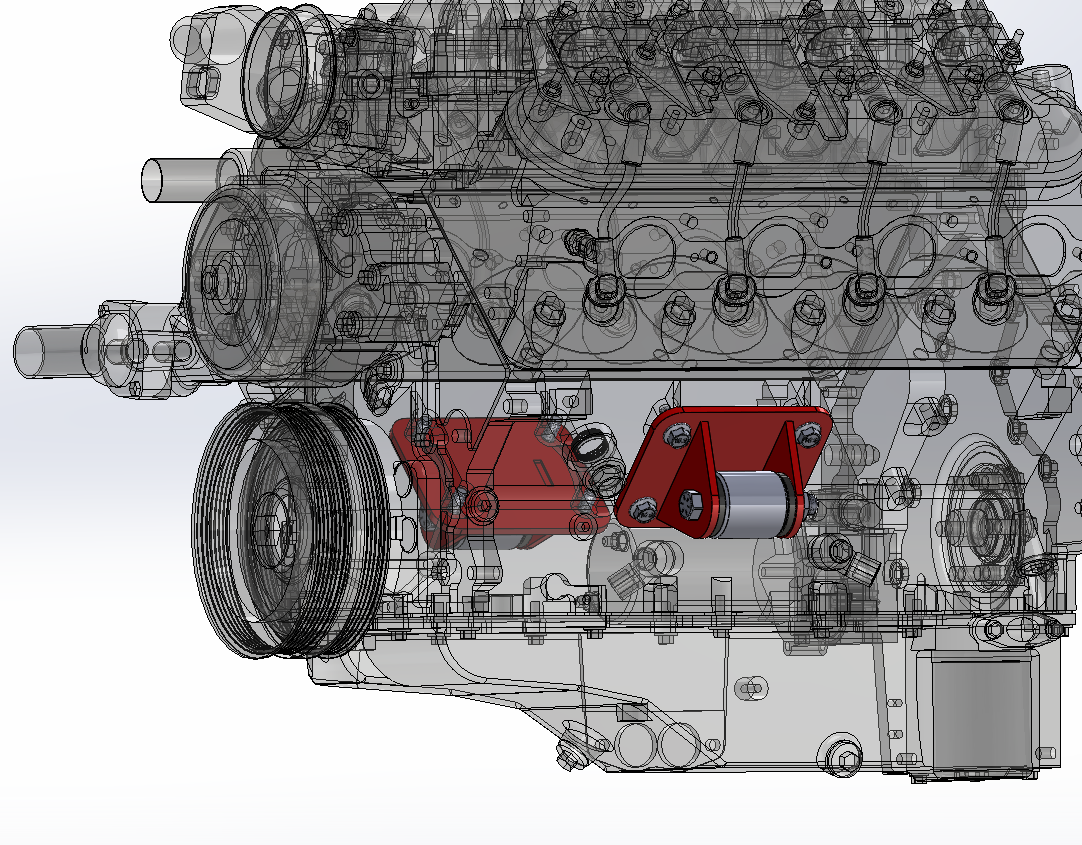

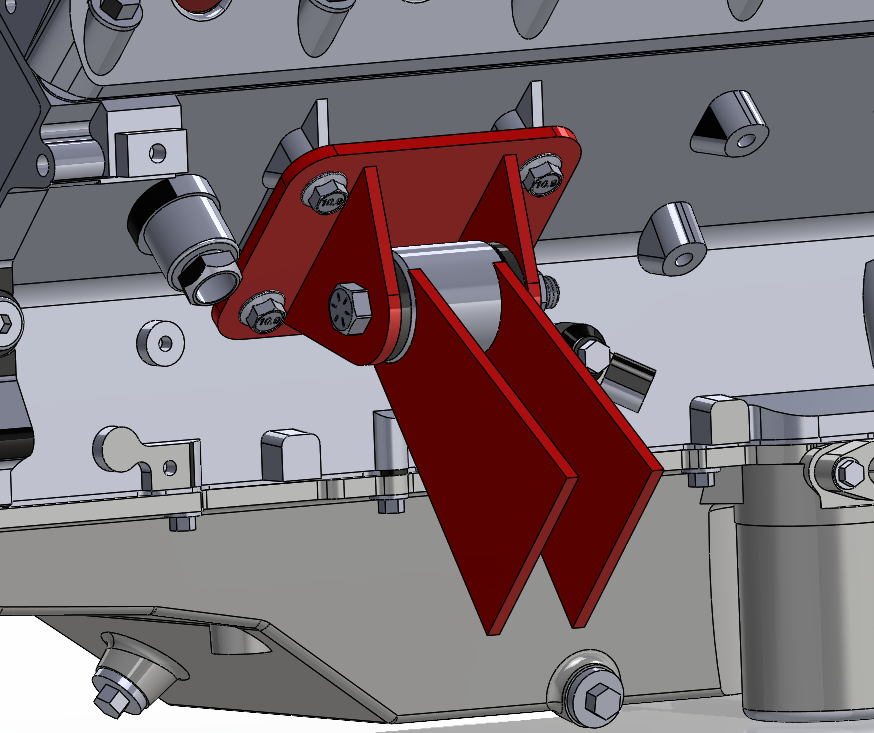

These universal LS engine mounts are designed around a common polyurethane bushing style mount, allowing you to fabricate custom engine mounts for LS swaps in virtually any chassis. The included chassis-side plates provide extra material that can be trimmed and adapted to suit your frame, crossmember, or custom mounting structure.
🔹 CNC-ready DXF files designed for plasma, laser, or waterjet cutting
🔹 Designed for LS-based engines (LS1, LS2, LS3, LQ4, LQ9, LM7, LY6, etc.)
🔹 Designed to be cut entirely from 1/4" steel plate

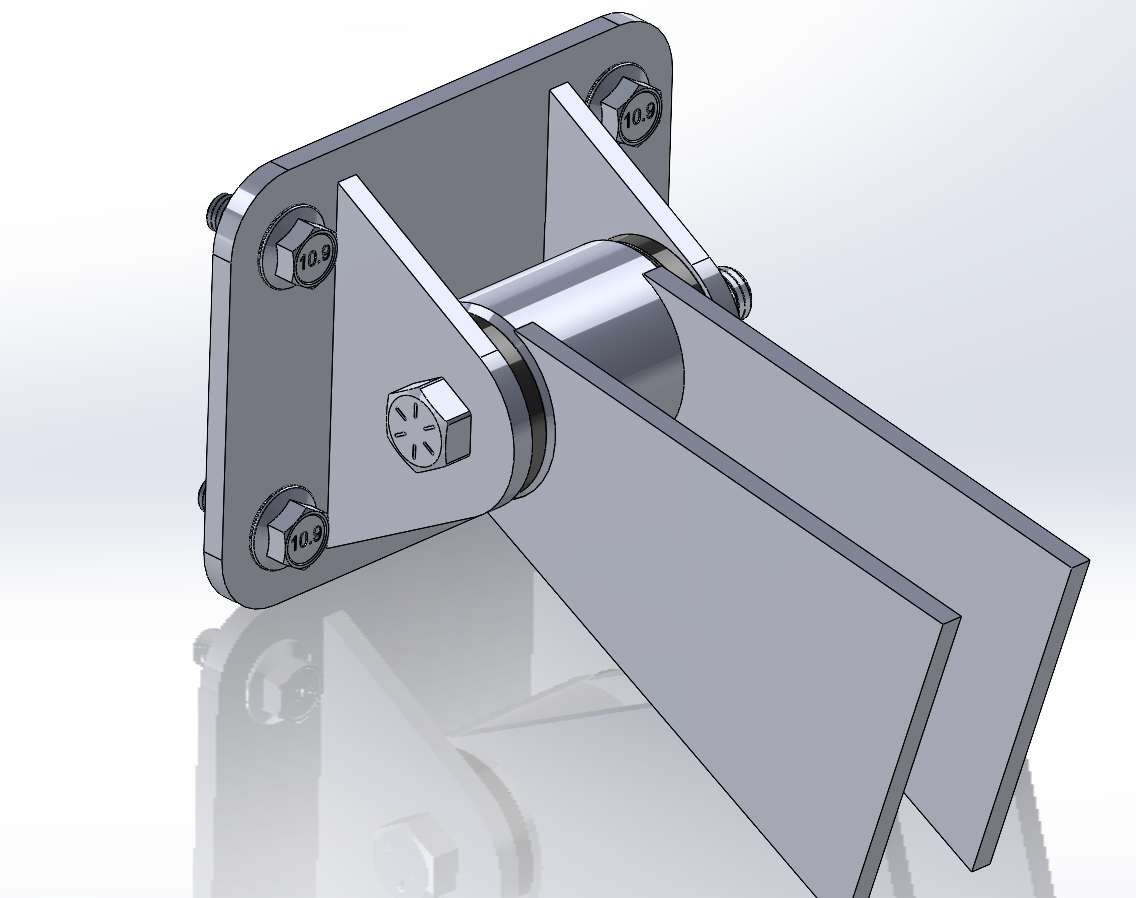

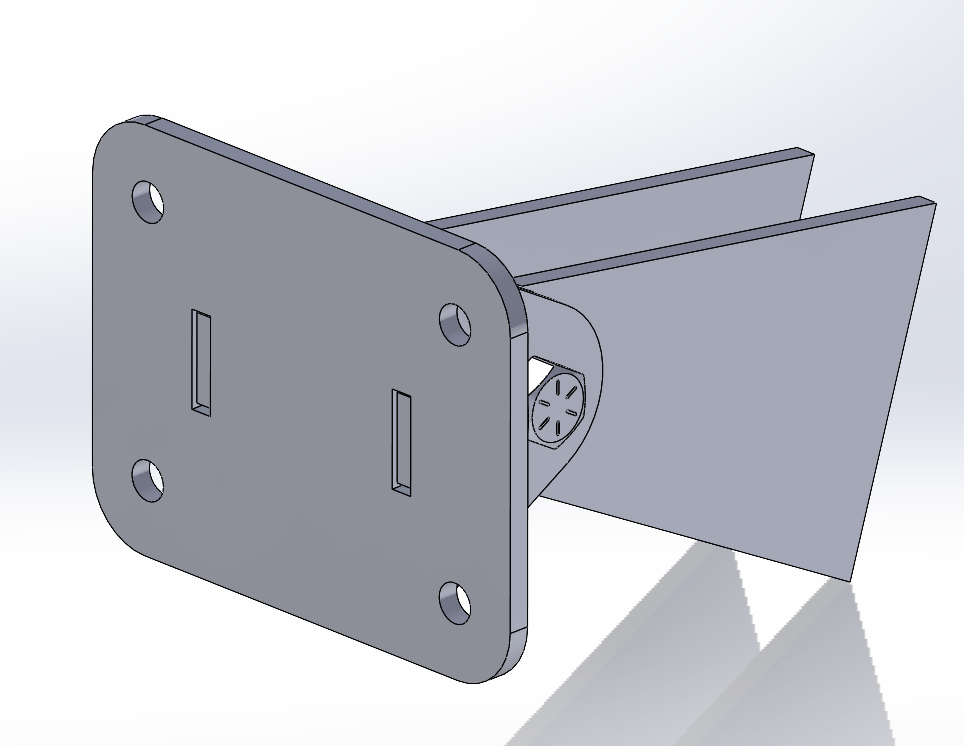

🔹 Tab-and-slot construction for accurate alignment, easy assembly, and strong weld joints
🔹 Universal chassis-side mounting plates can be trimmed to fit your specific application
🔹 Designed for a 2.625" (2-5/8") wide polyurethane engine mount bushing
🔹 Bushing sleeve designed for a 9/16" mounting bolt

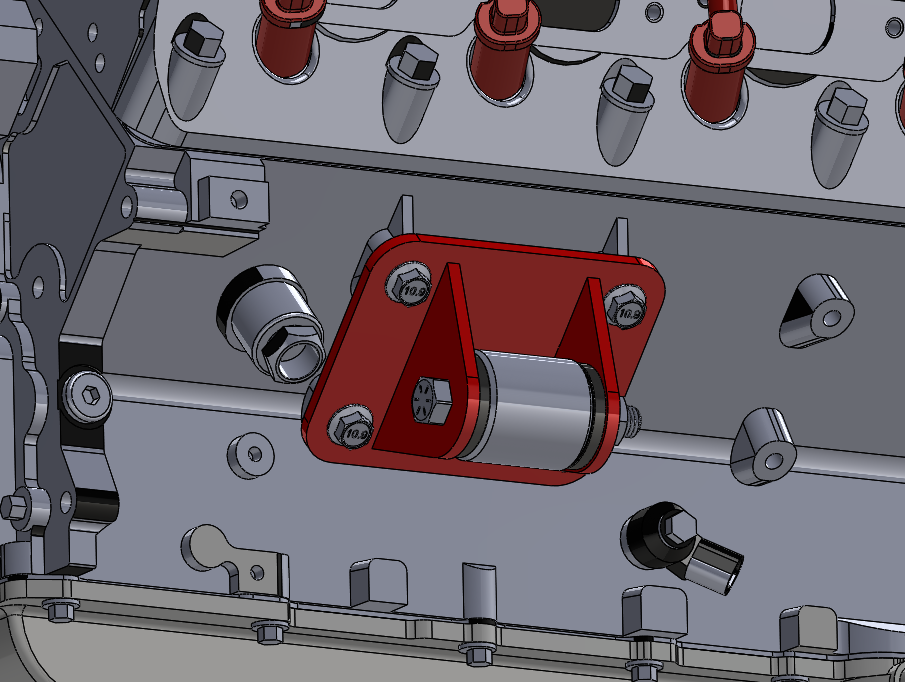

🔹 LS block mounting holes designed for M10 hardware
🔹 Ideal for custom chassis builds, buggy projects, engine swaps, and off-road applications
These mounts are designed to be used with bushed drivetrain mounting systems. Do not mix bushed engine mounts with a rigidly mounted transmission or transfer case. The drivetrain should either be fully isolated using bushings or fully rigid-mounted throughout.
These digital DXF files are intended for personal or commercial fabrication use. No physical mounts, bushings, hardware, or materials are included with this listing.
