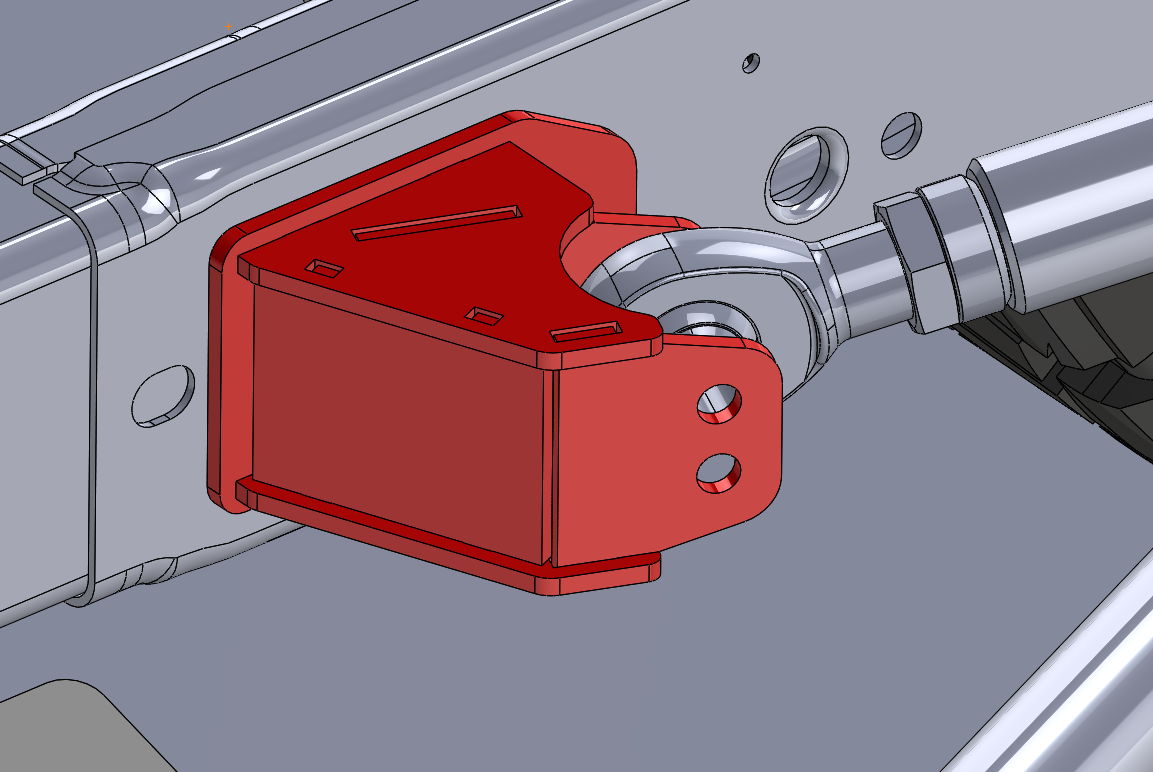

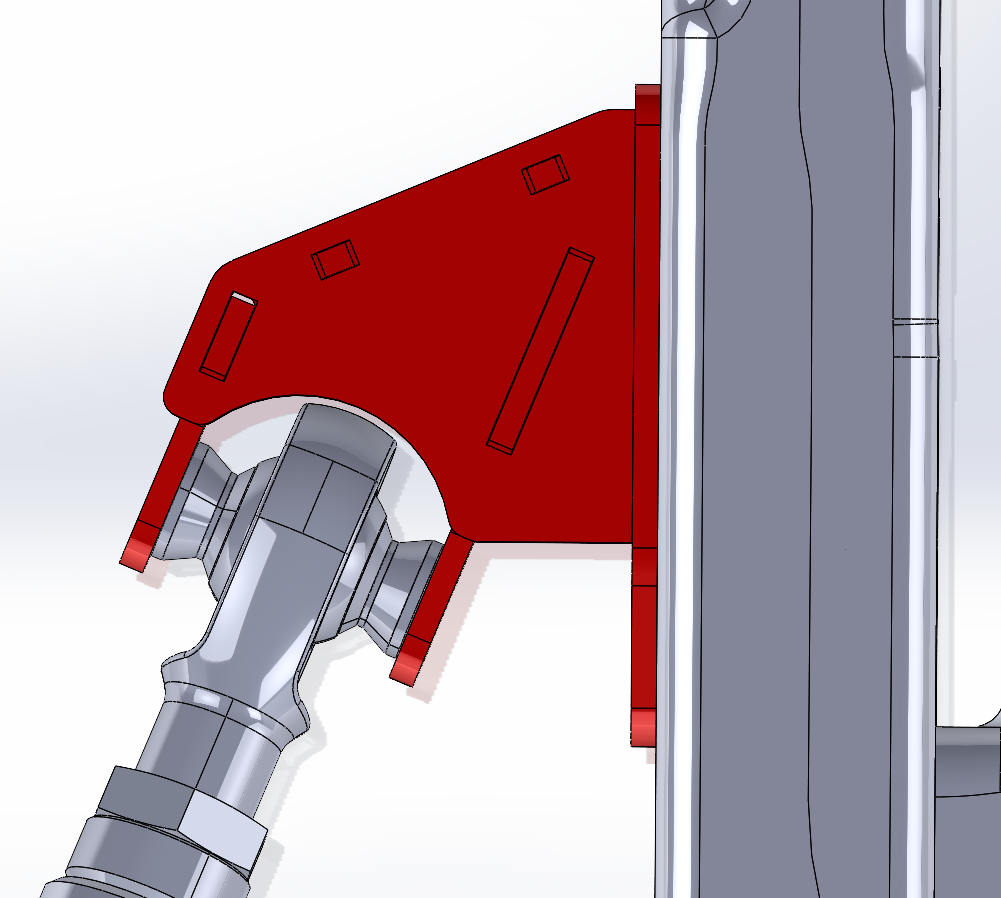

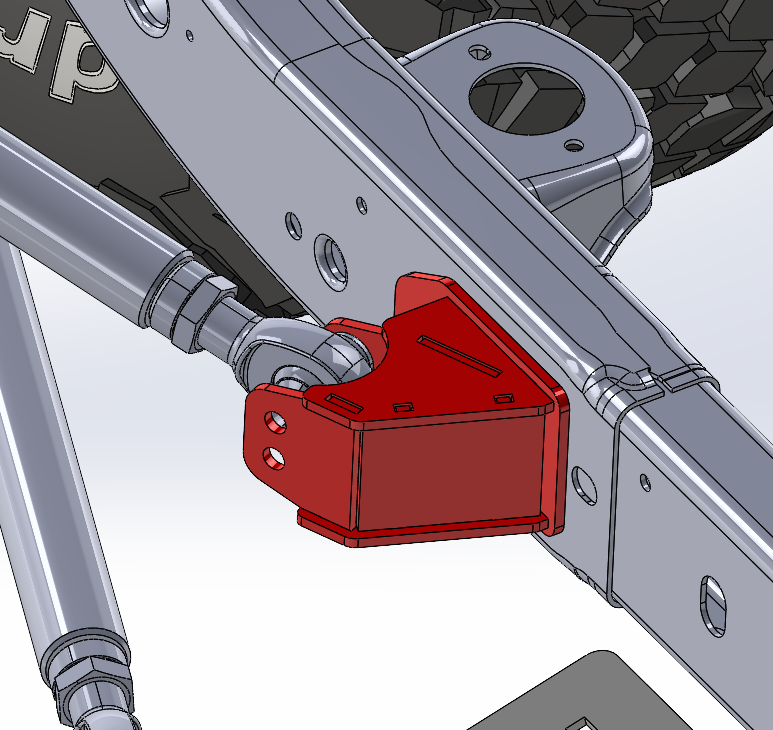

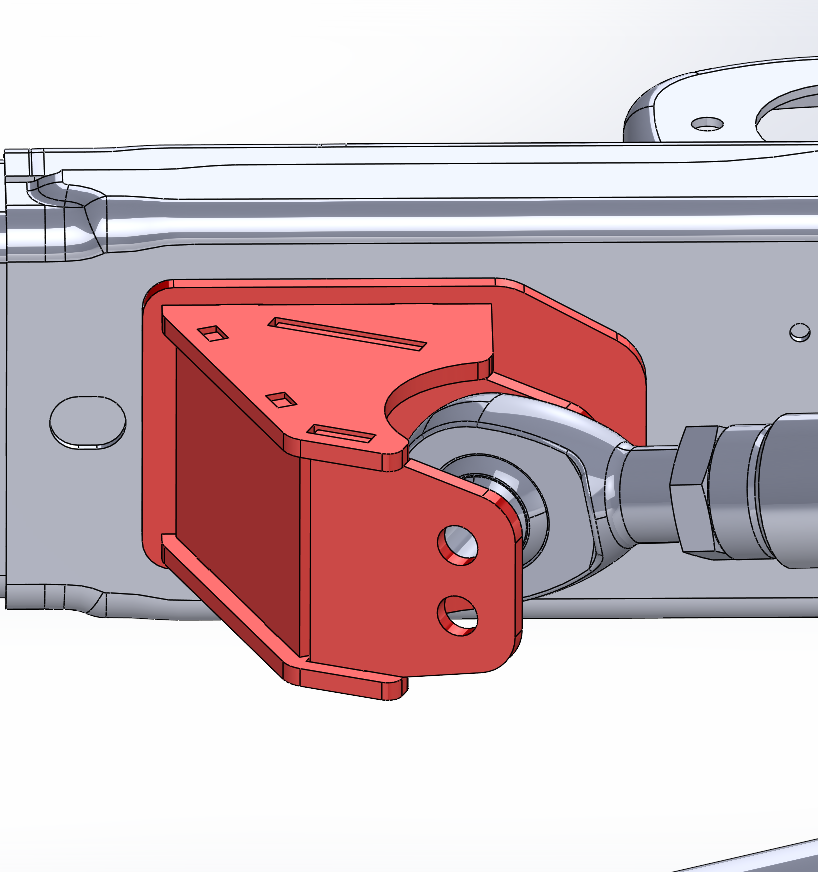

Universal 4-Link Upper Control Arm Frame-Side Mount 22.5 deg– DXF Files
Building your custom suspension setup? These DXF files allow you to cut and fabricate a universal frame-side upper control arm mount designed for 4-link suspension systems, with built-in adjustability for dialing in anti-squat geometry.

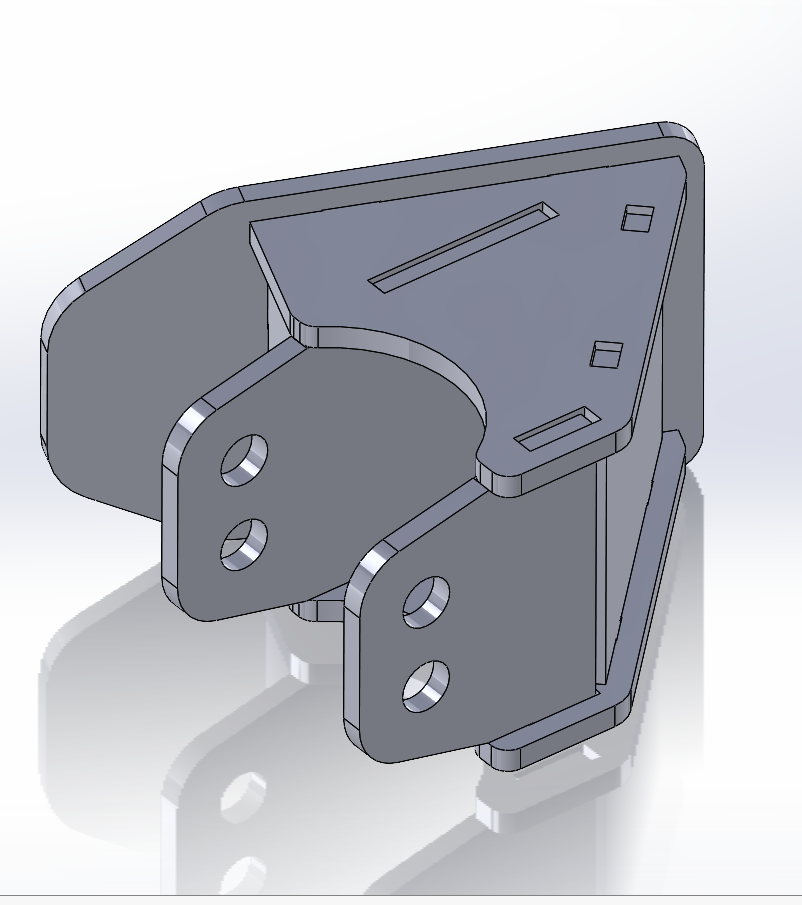

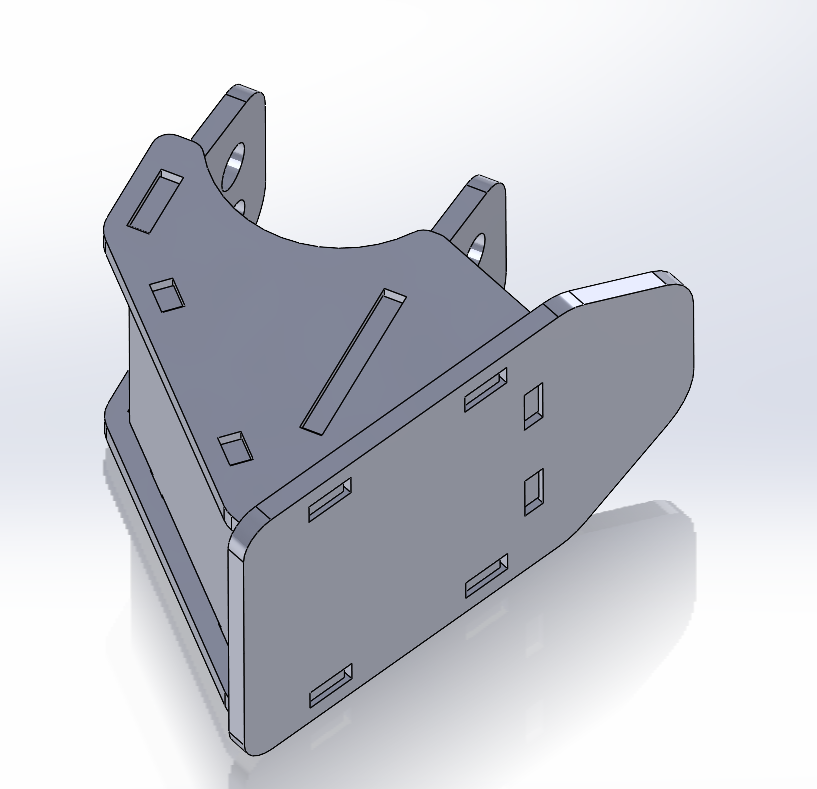

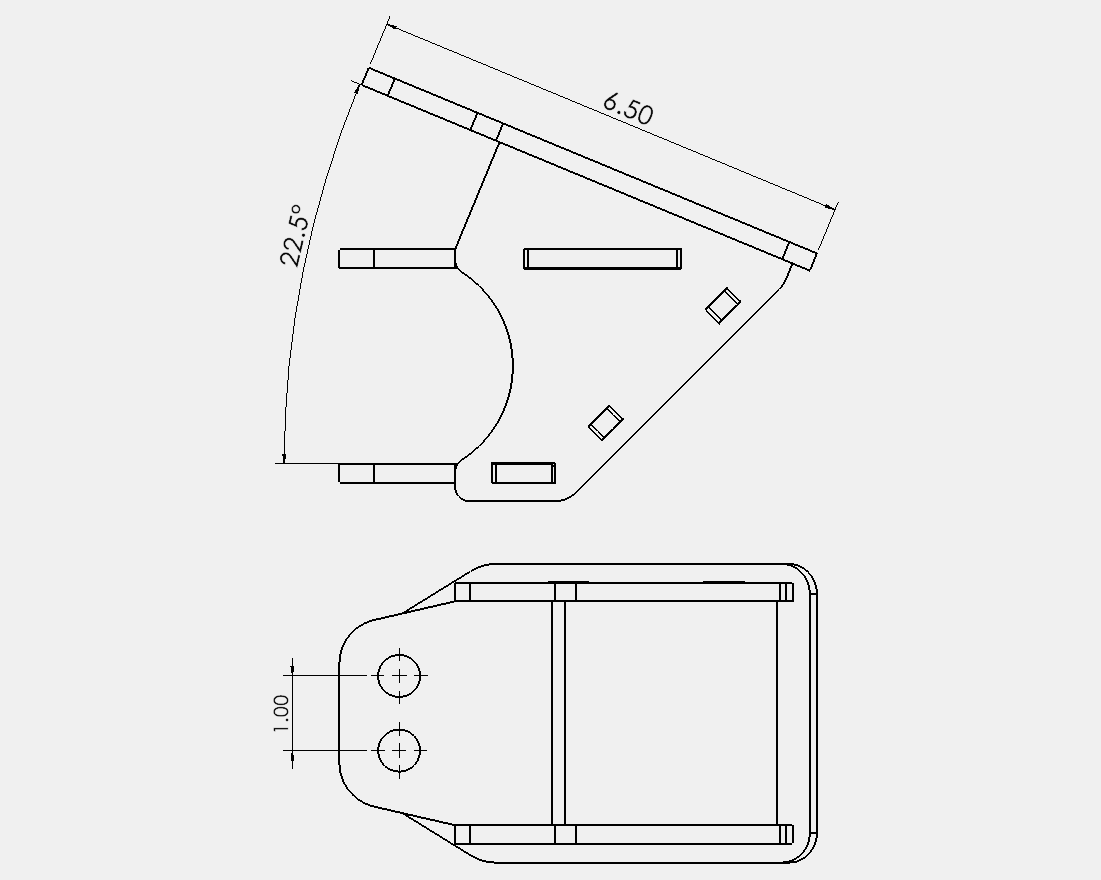

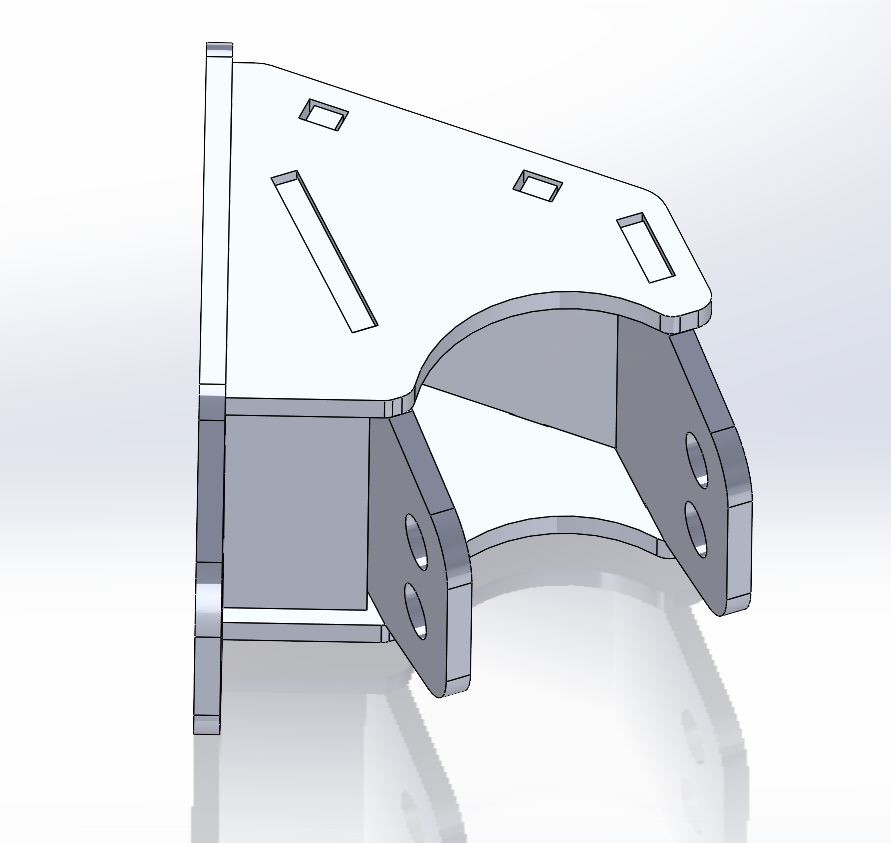

🔹 CNC-ready DXF files optimized for plasma, laser, or waterjet cutting from 1/4" steel 🔹 Full tab-and-slot assembly — no bending required 🔹 Designed to fit 2.625" wide suspension joints (Johnny Joints, flex joints, or rod ends with high-misalignment spacers) 🔹 6.5" long back plate to weld to inner side of frame with integrated 22.5° mounting angle 🔹 Dual 9/16" mounting holes spaced 1" apart for upper link geometry adjustment (anti-squat tuning) 🔹 Suitable for custom 4-link suspension builds and chassis fabrication
These digital DXF files are in standard inch and intended for personal or commercial fabrication use. No physical brackets, hardware, or materials are included.
