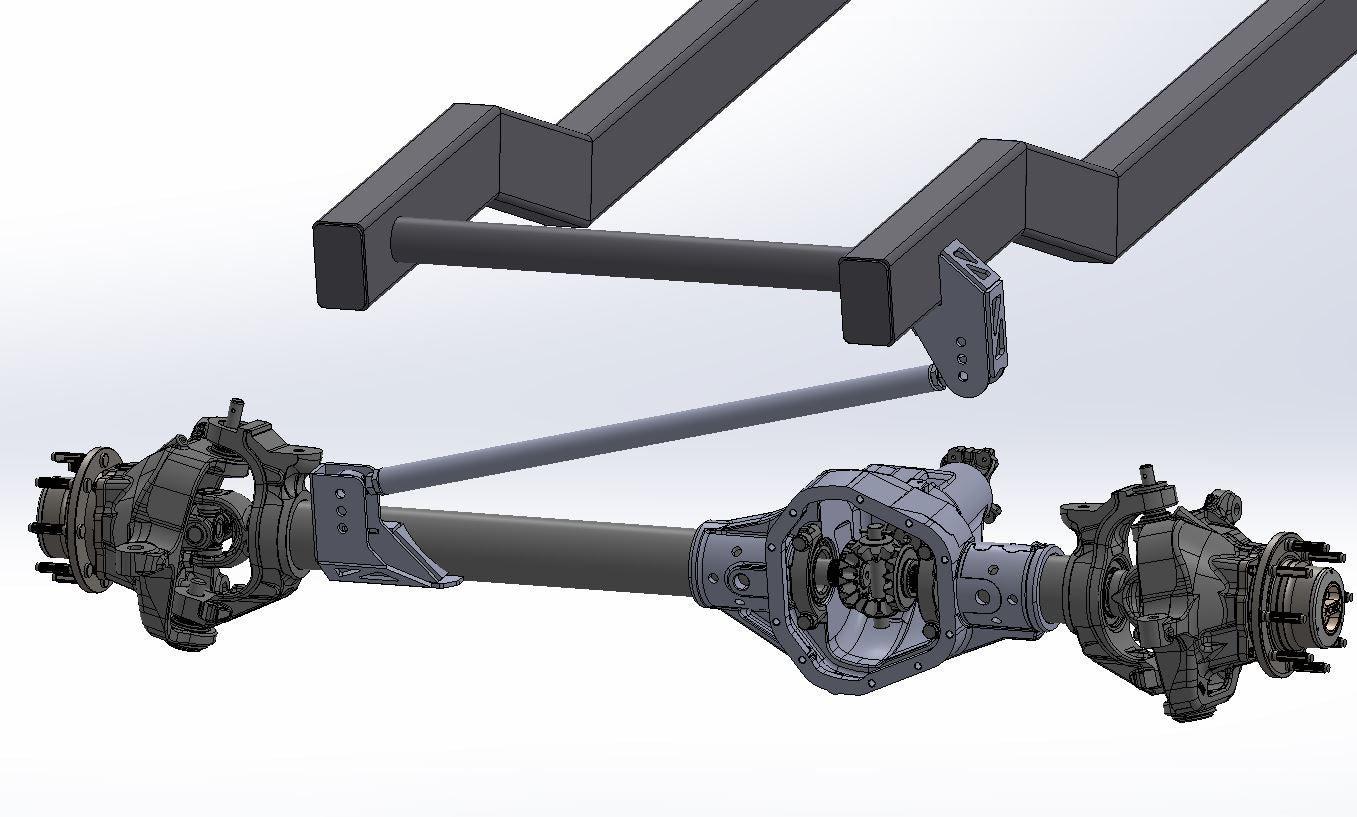

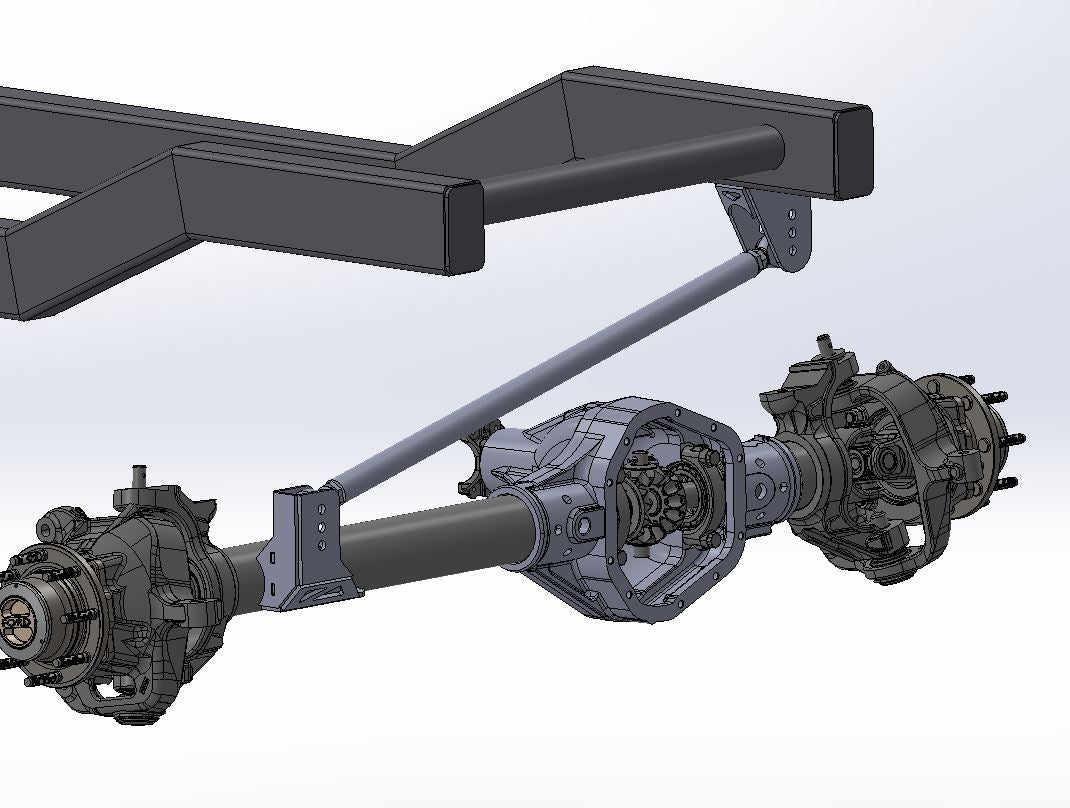

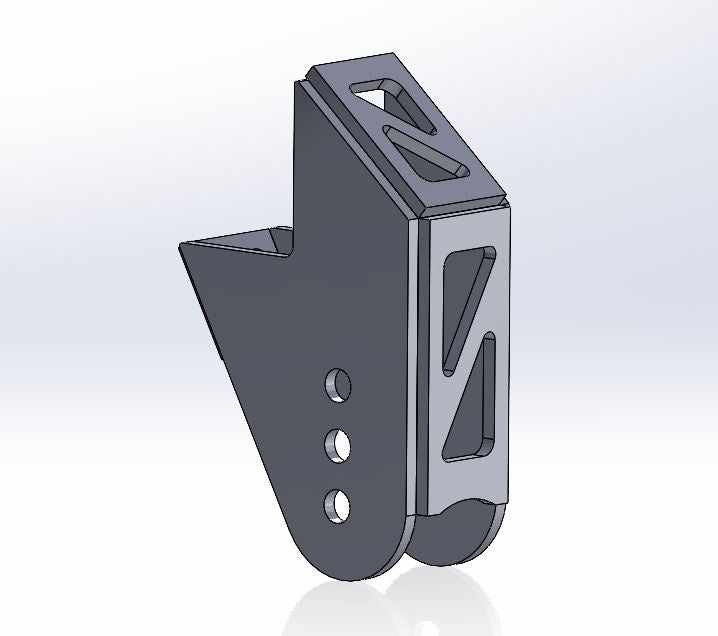

This DXF file package includes cut-ready files for CNC plasma, laser, or waterjet cutting adjustable upper and lower track bar brackets.

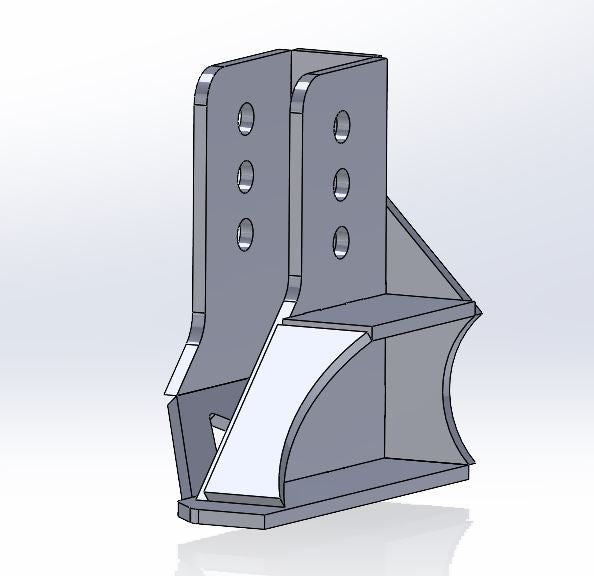

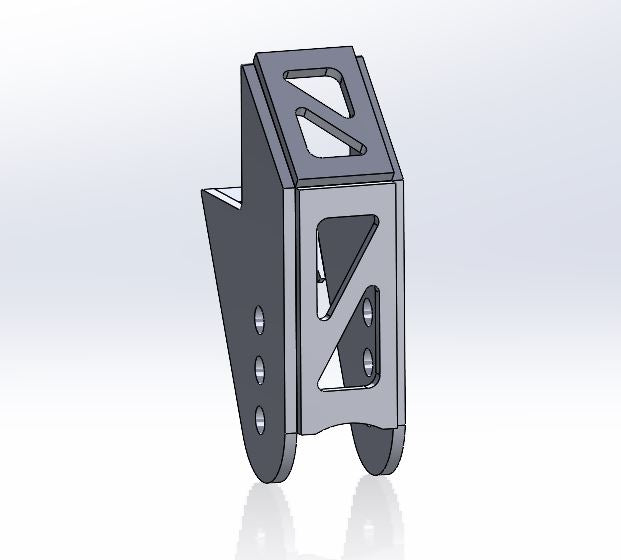

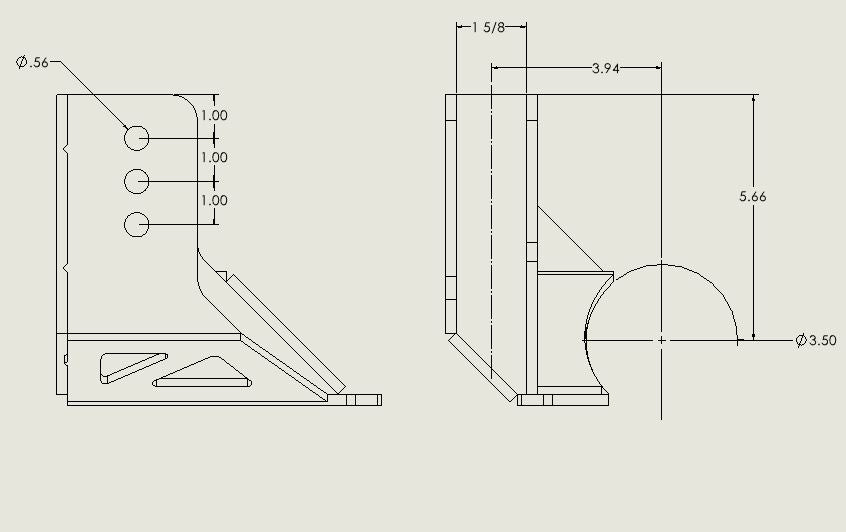

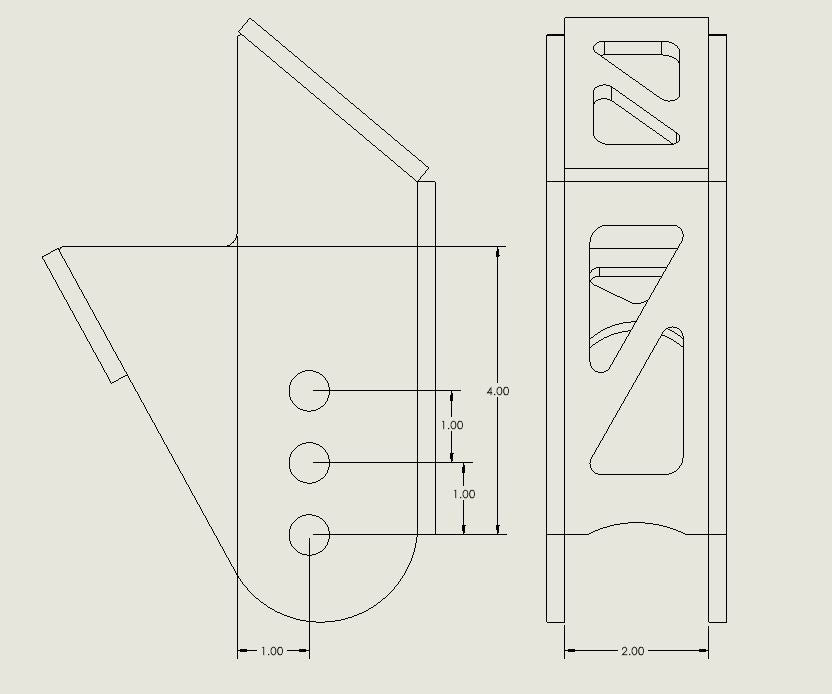

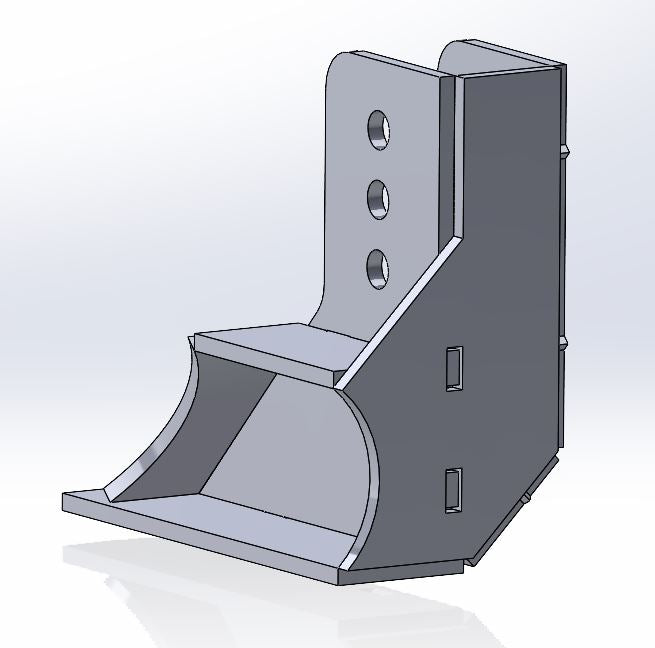

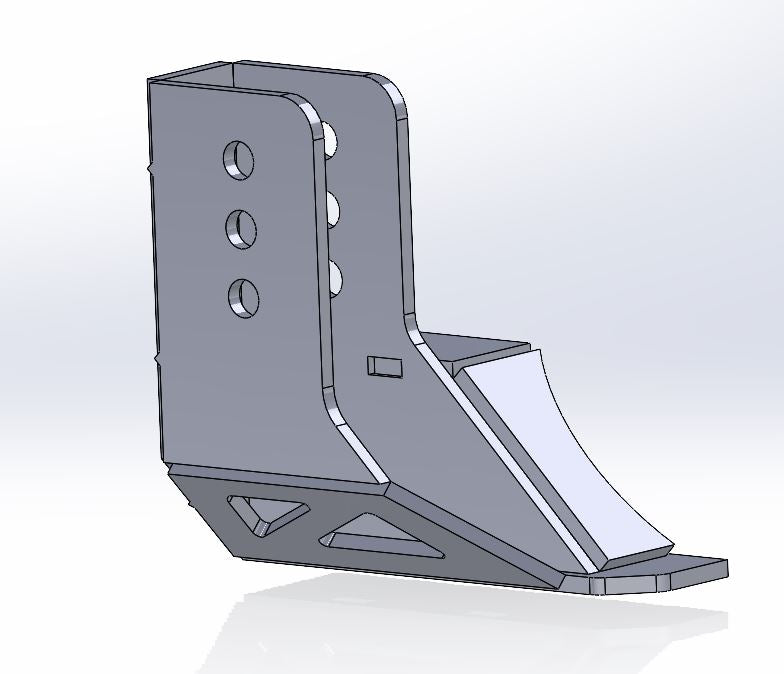

🔹 Upper & lower bracket kit for complete track bar height adjustment. 🔹 3 mounting positions to fine-tune suspension geometry and eliminate bump steer. 🔹 Designed for 3.5” axle tubes but can be modified for other sizes. 🔹 9/16” mounting holes, easily drilled larger if needed. 🔹 1.6” mounting width for lower axle side bracket 🔹 2" Mounting width for upper frame side bracket 🔹 Keyed design for easy fitment and welding—no complex bending required. Includes Standard and METRIC DXF Files
These are digital files only—no physical parts or hardware are included.
