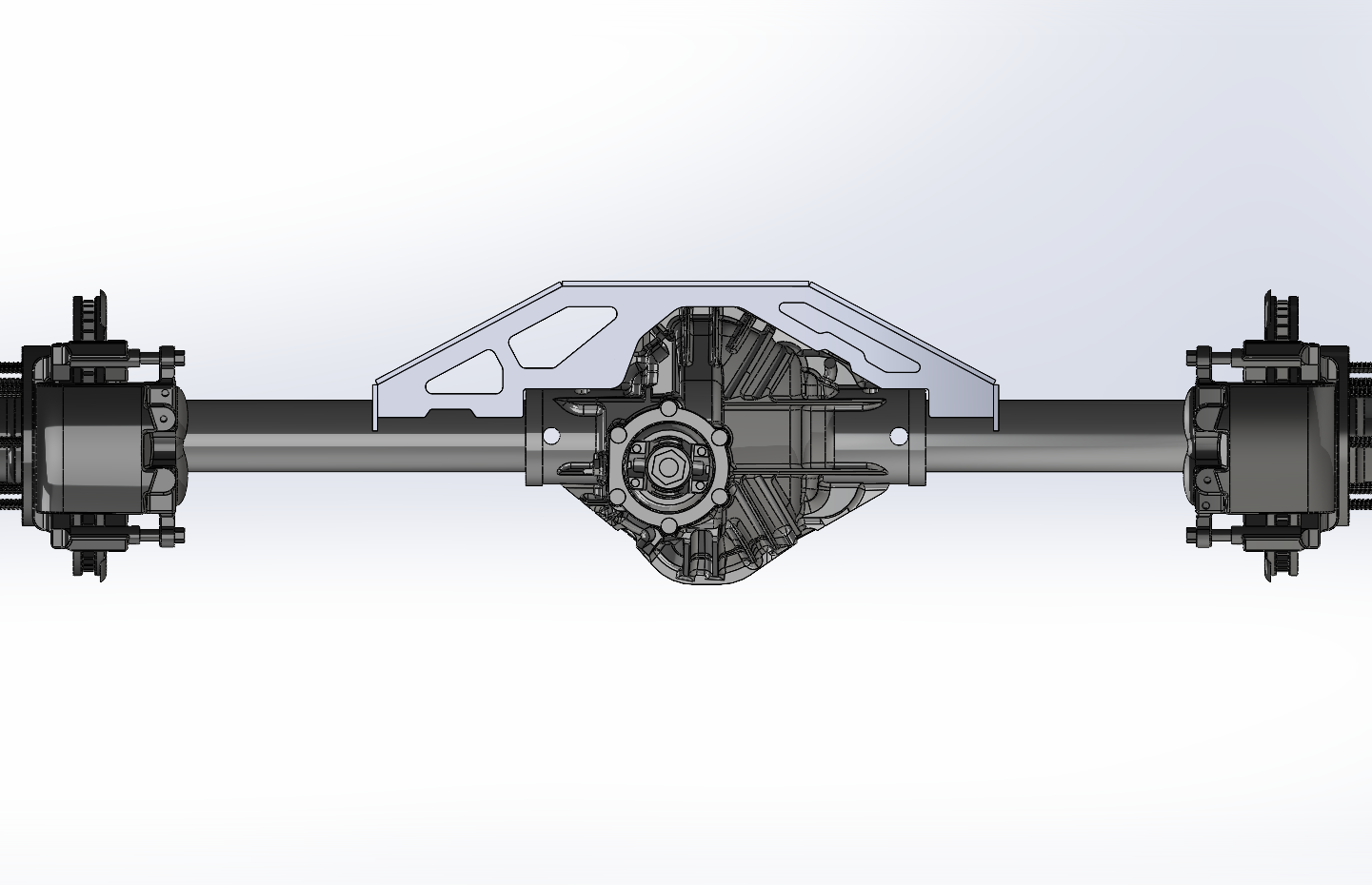

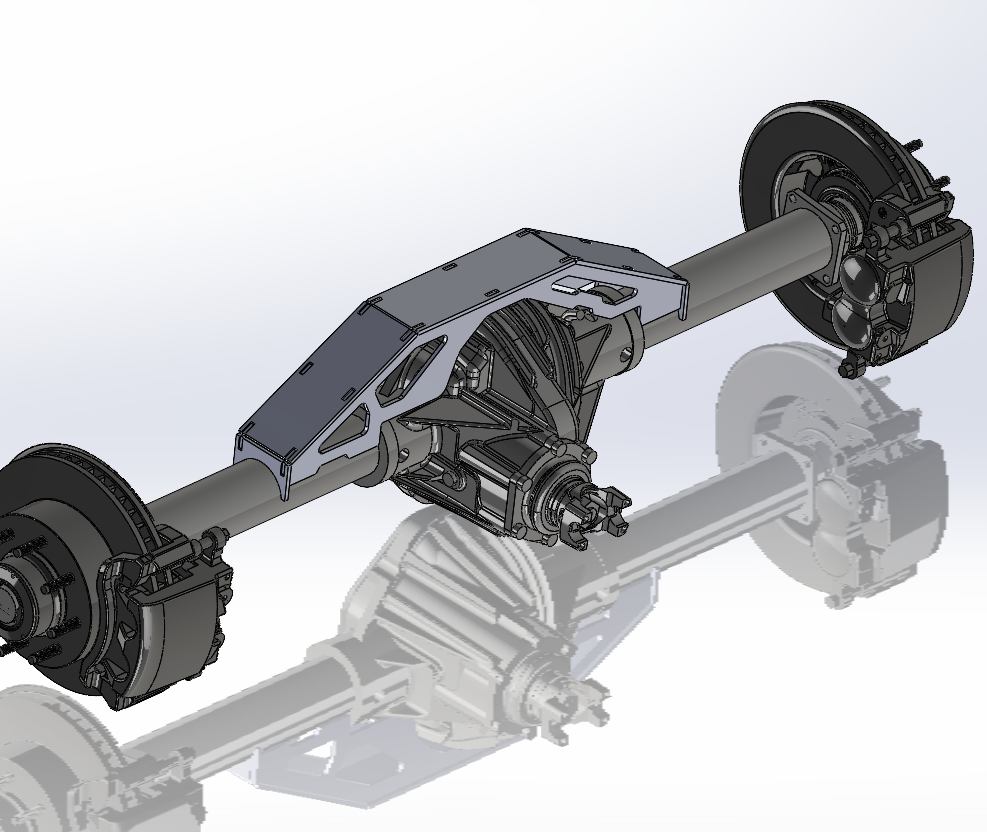

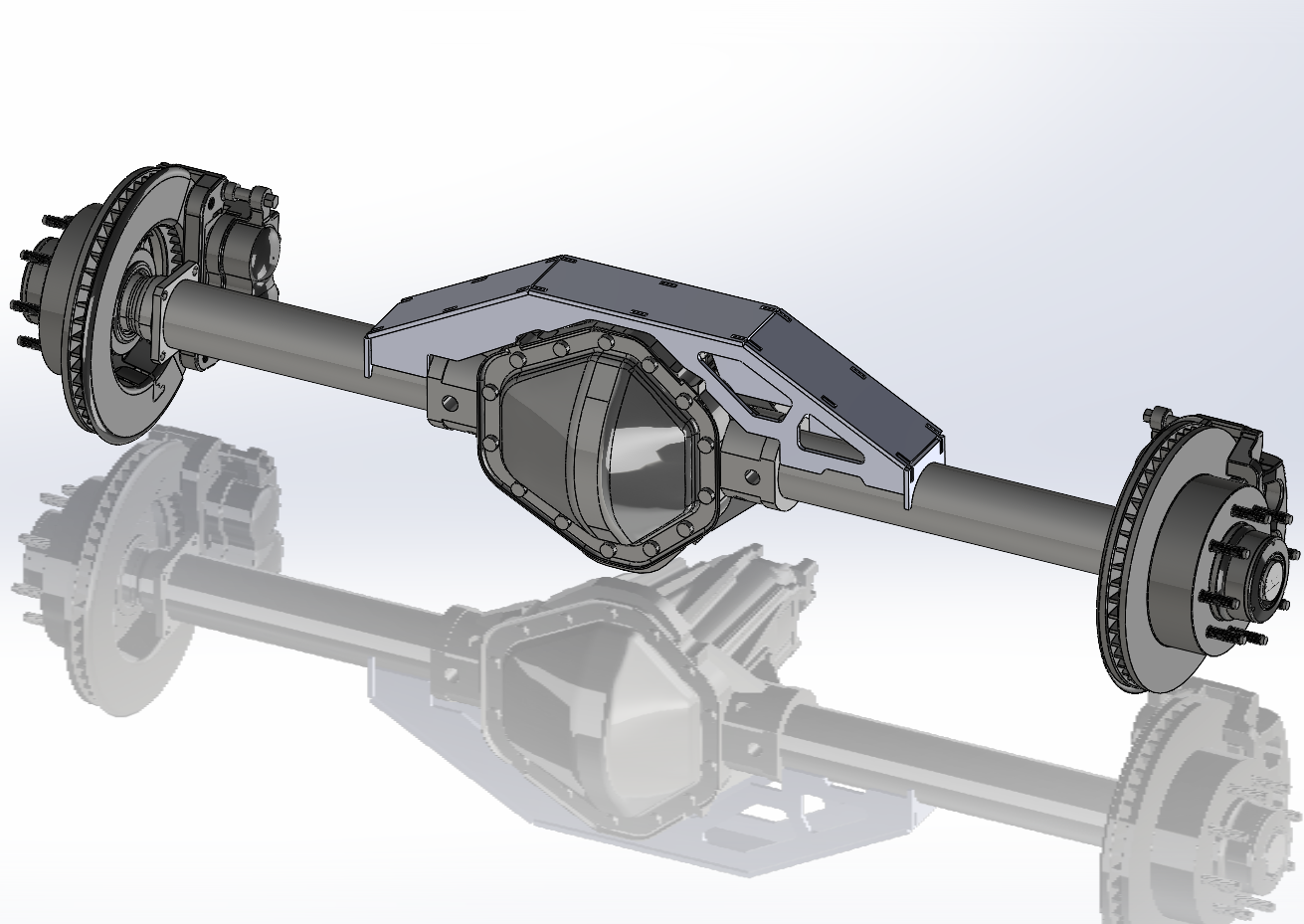

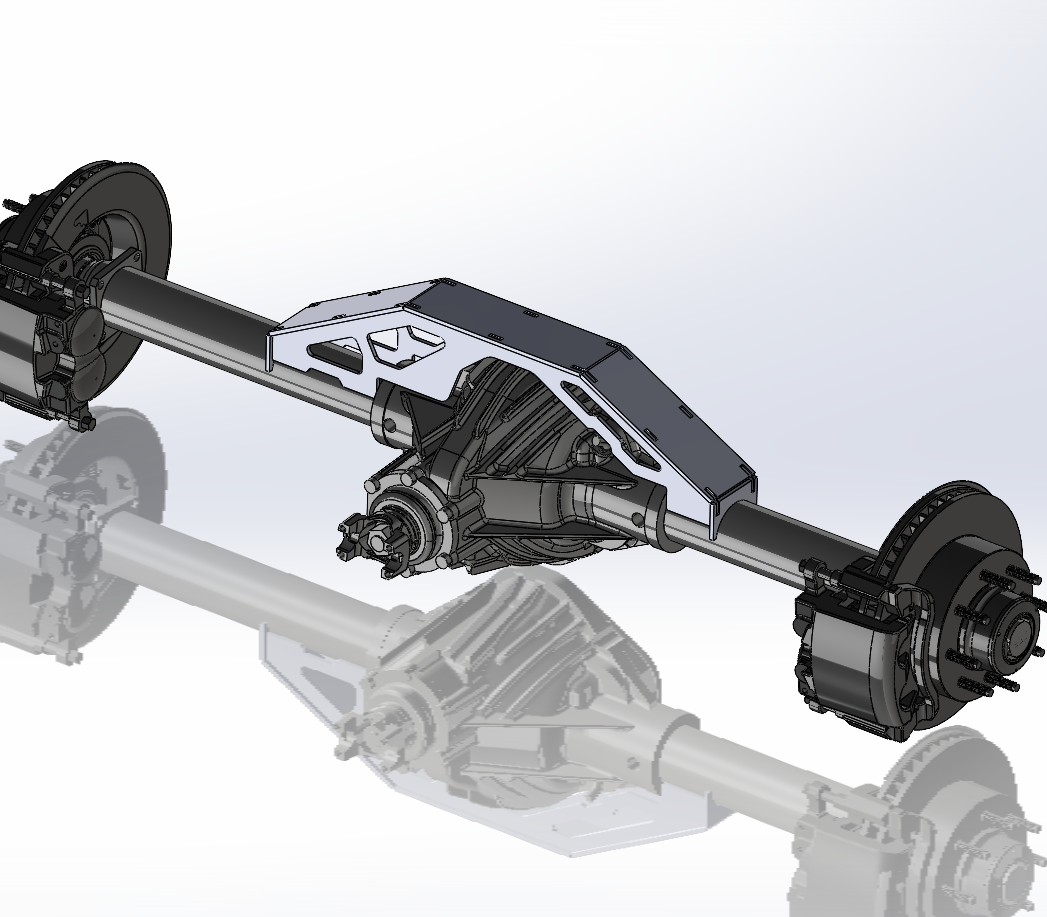

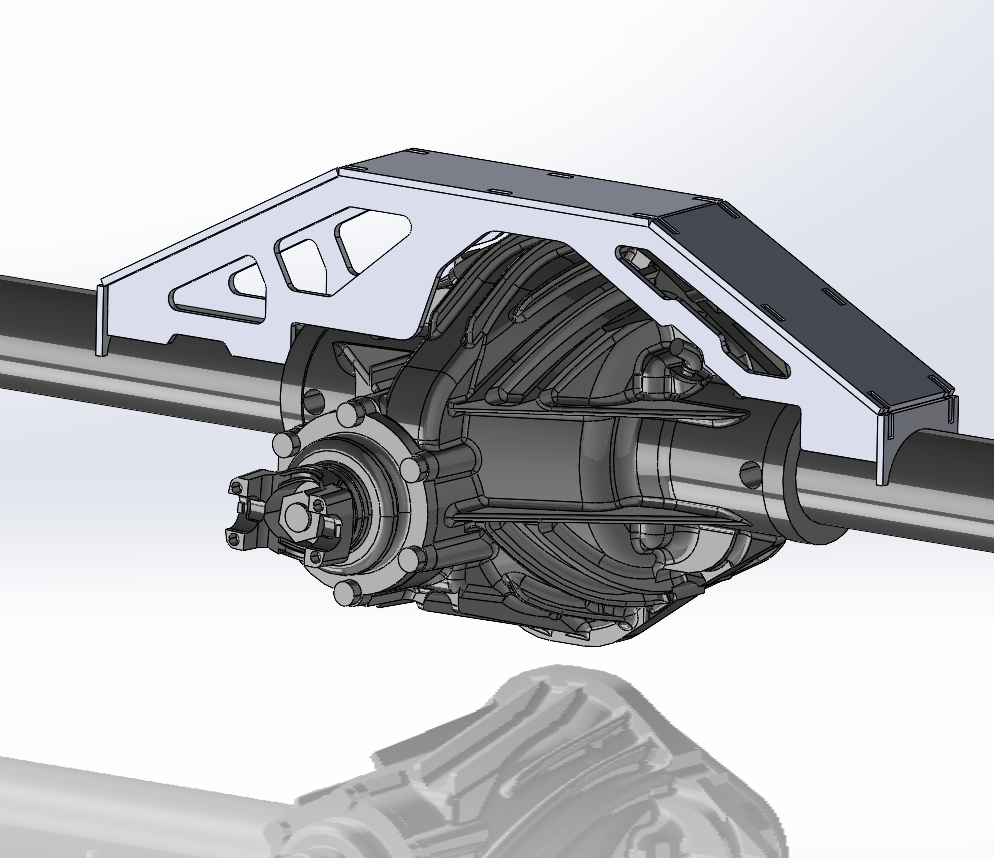

This low-profile rear axle truss is designed specifically for the GM/Chevy 14-Bolt Full Float axle with 3.5" axle tube diameter found in 2500 & 3500 Single Rear Wheel trucks. The design maximizes clearance, strength, and packaging—ideal 3 or 4 link setups with coilovers, shocks, and high-articulation off-road suspension setups.

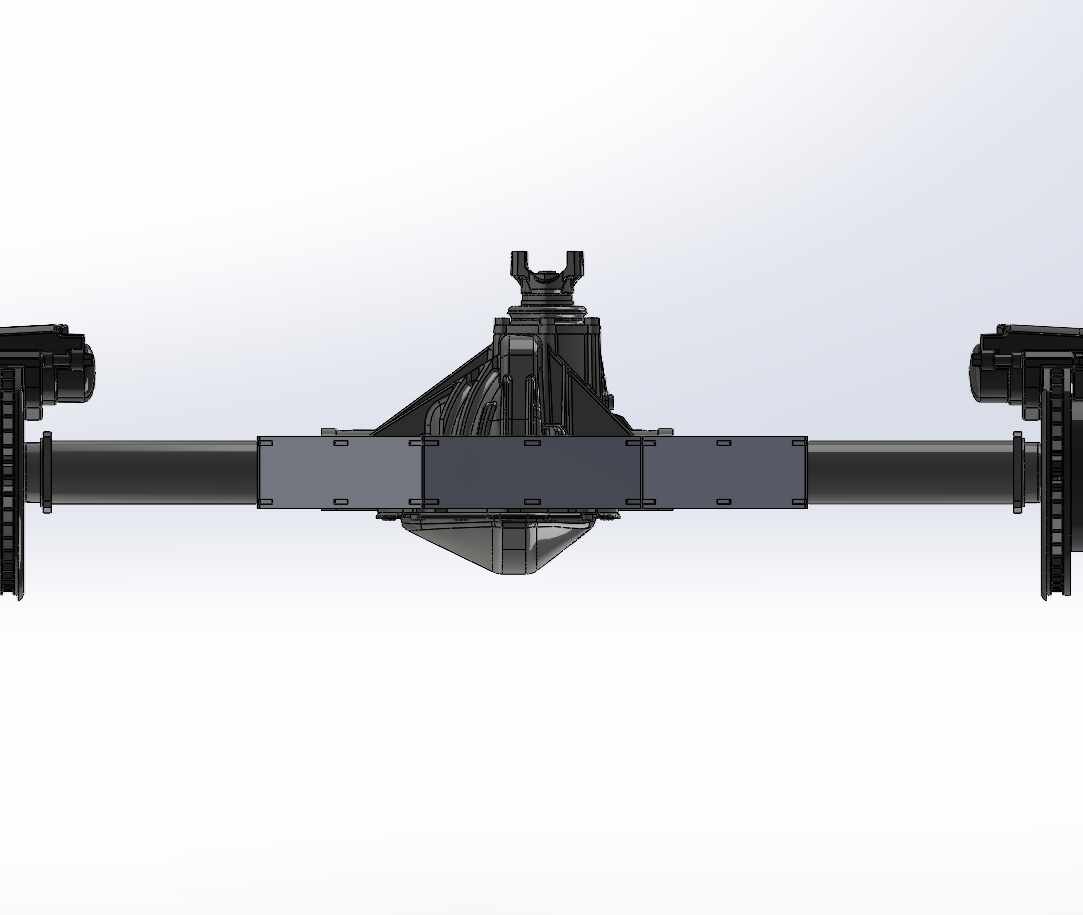

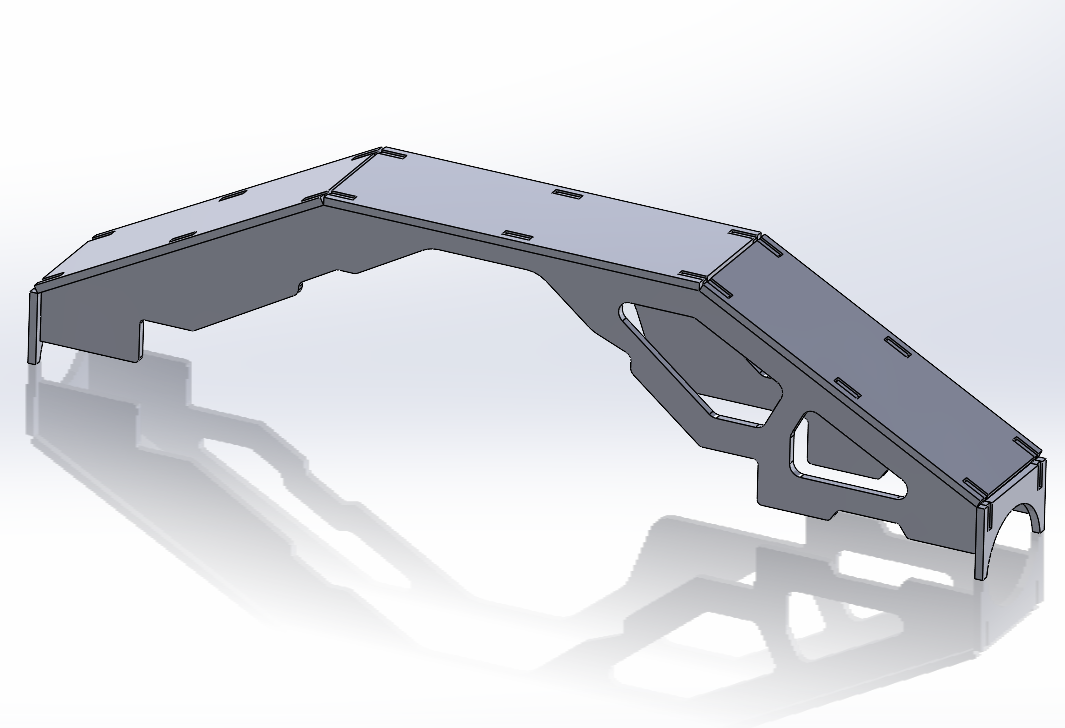

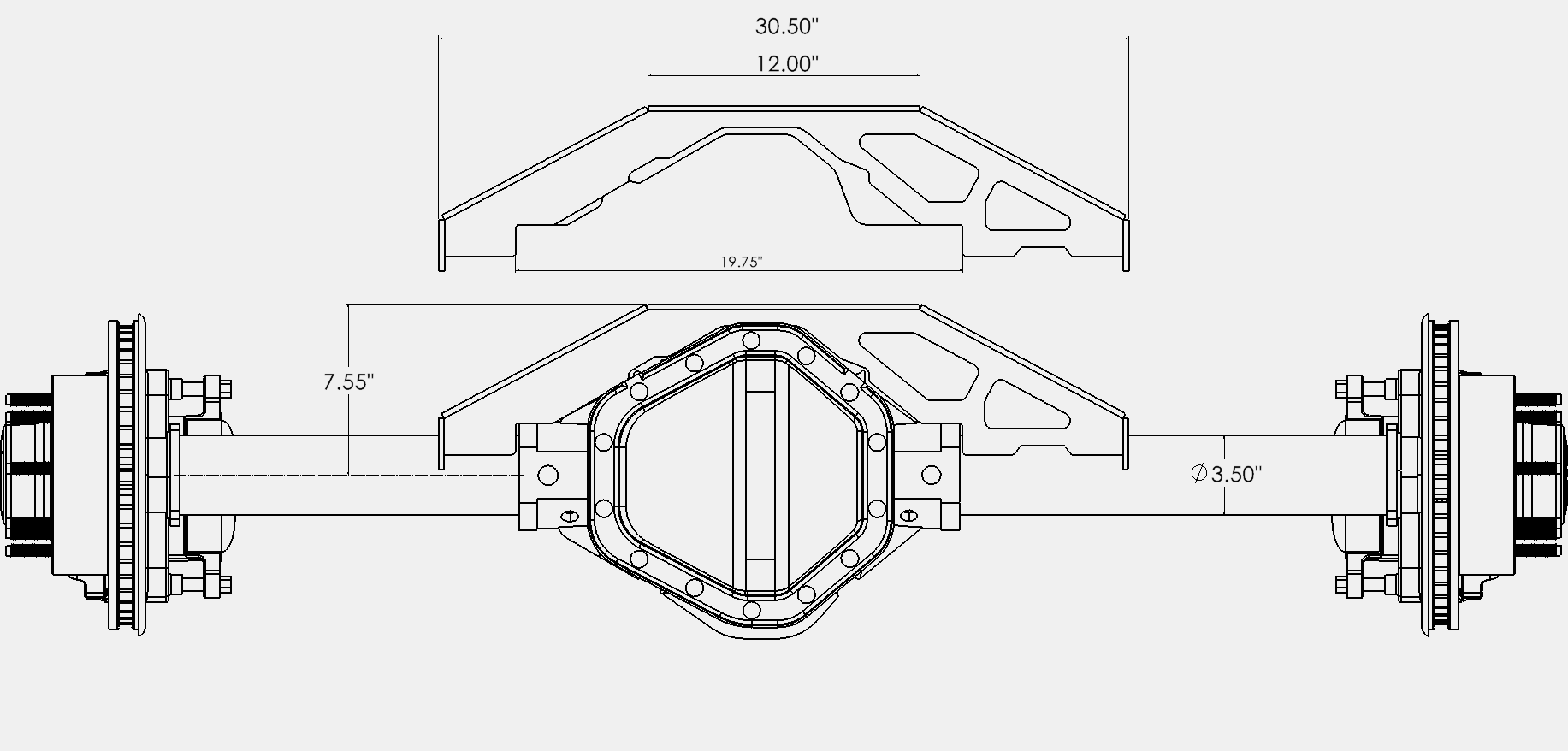

🔹 CNC-ready DXF file designed for plasma, laser, or waterjet cutting 🔹 Cut from 1/4" steel (top plates ONLY may optionally be cut from 3/8" for more strength) 🔹 Low-profile design maintains maximum up-travel and shock clearance 🔹 Tab-and-slot construction — no bending required 🔹 Includes one DXF file containing the full truss with all interlocking plates 🔹View dimension drawing to ensure correct fitment

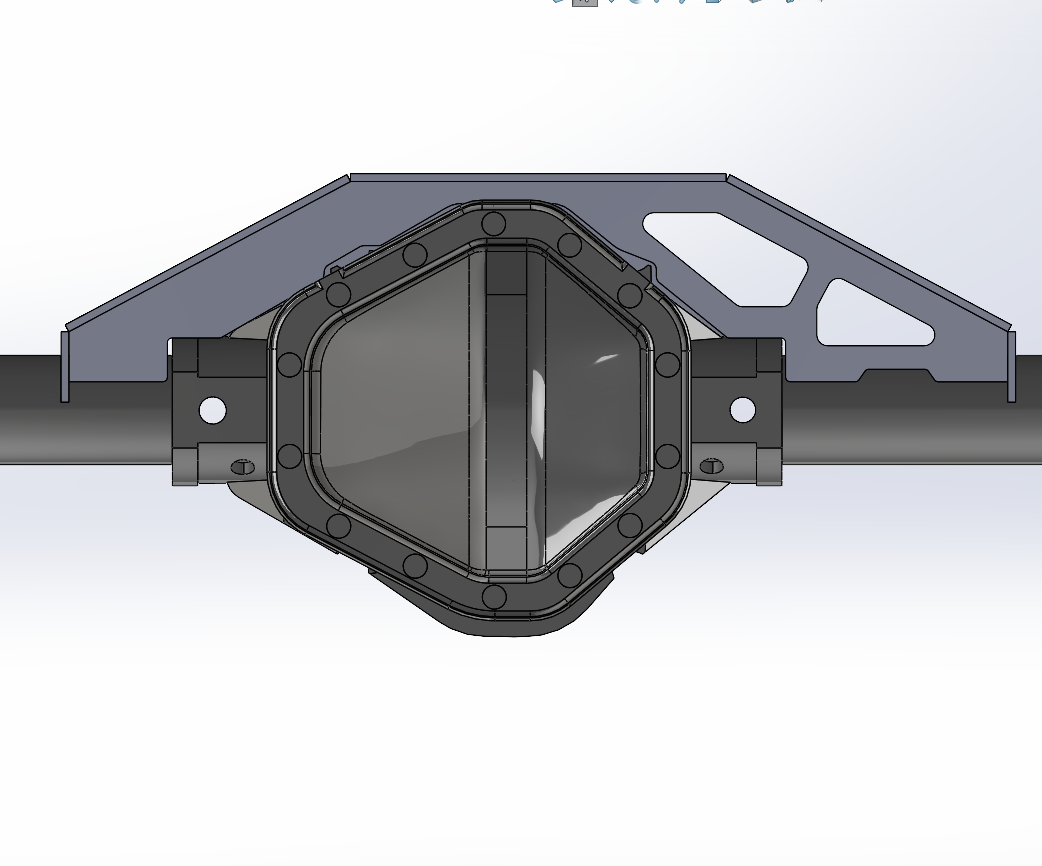

This truss is designed to fit the following rear axle: GM/Chevy 14-Bolt Full Float (10.5" ring gear) 1999–2006 2500 / 3500 SRW trucks 3.5" axle tube diameter 14-bolt differential cover 6-bolt removable pinion support
These digital DXF files are intended for personal or commercial fabrication use. No physical truss, hardware, or materials are included with this listing.
