2005+ Ford Super Duty Dana 60 Full-Height Axle Truss – DXF Files DXF CAD Files ONLY – No Physical Product Included

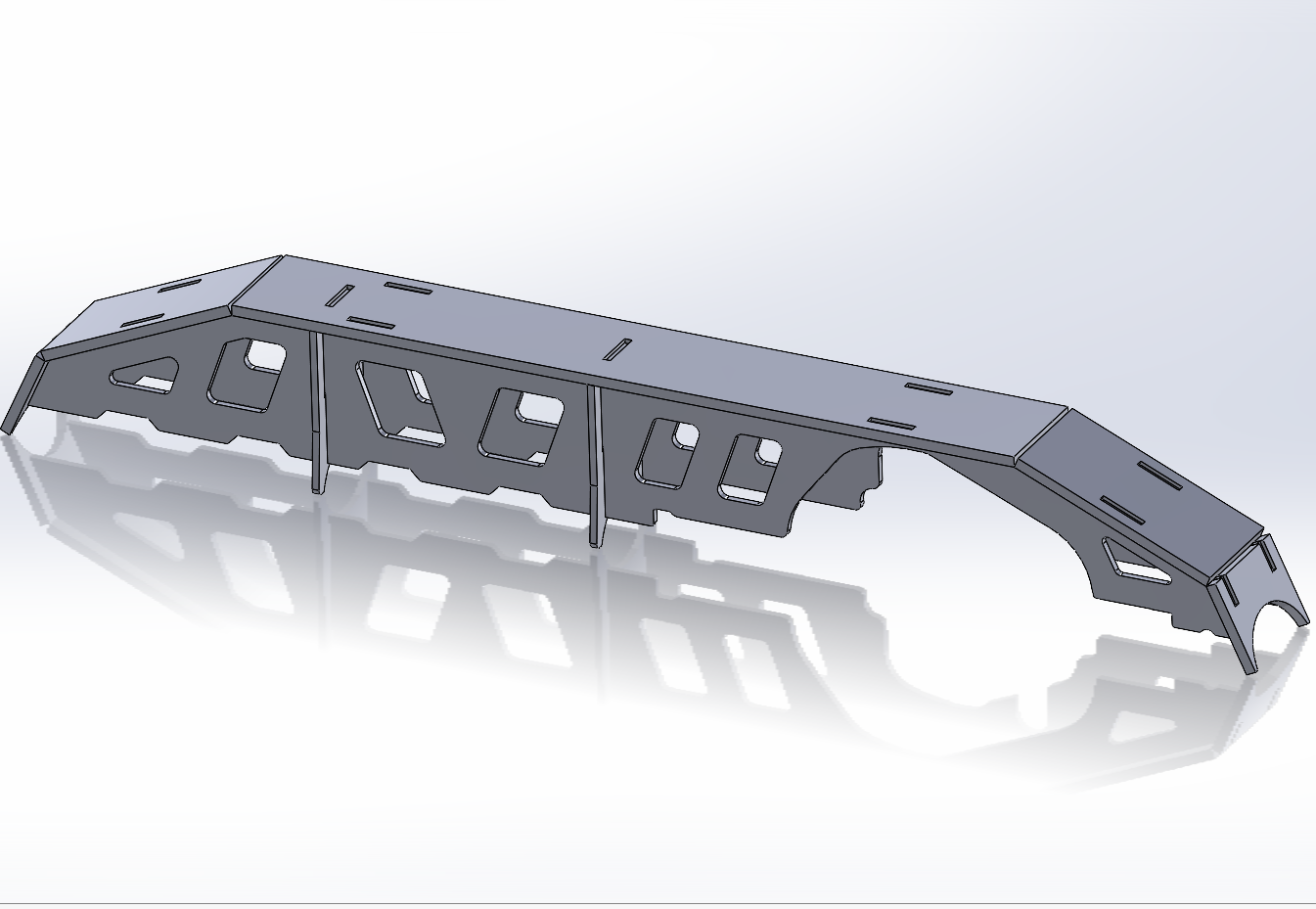

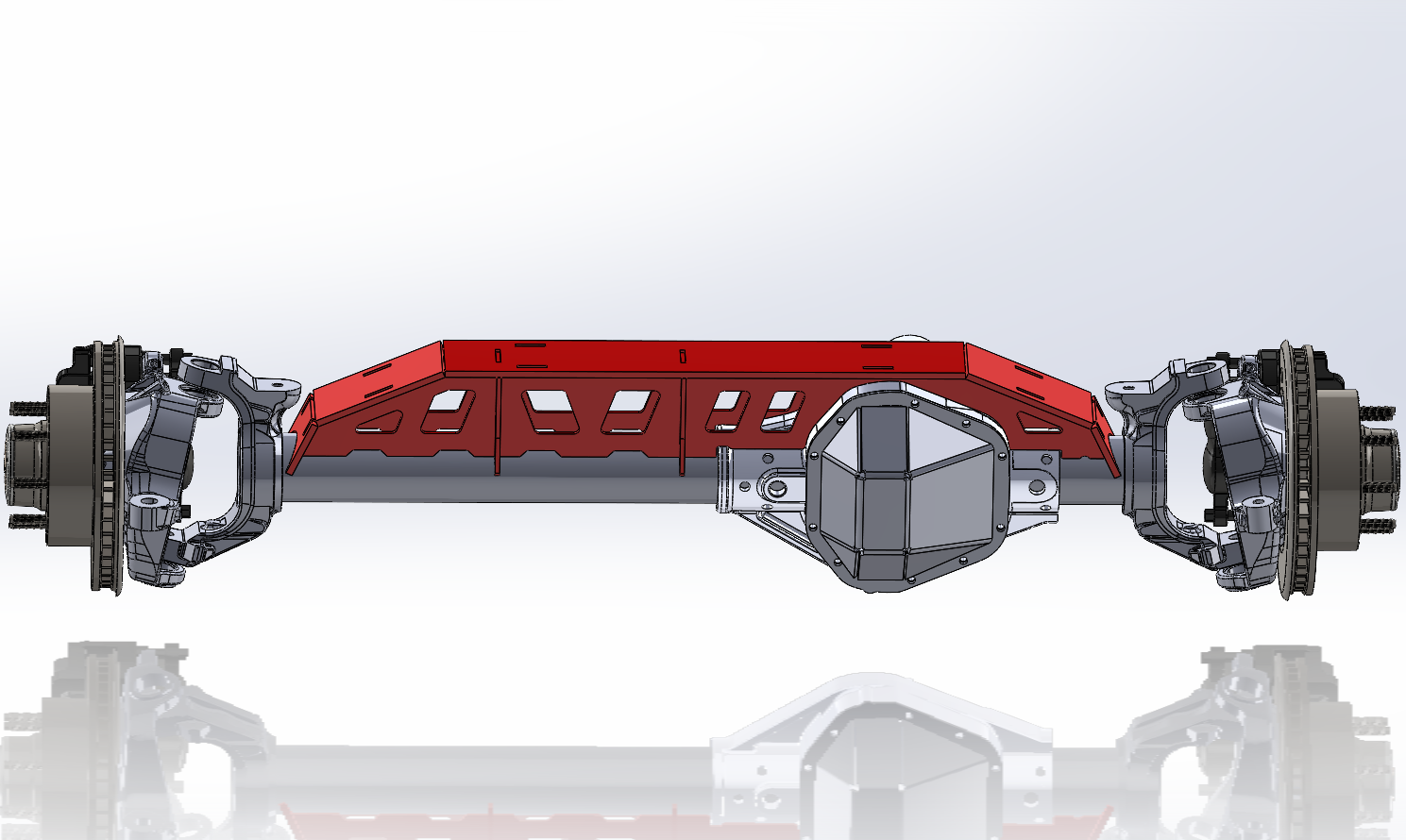

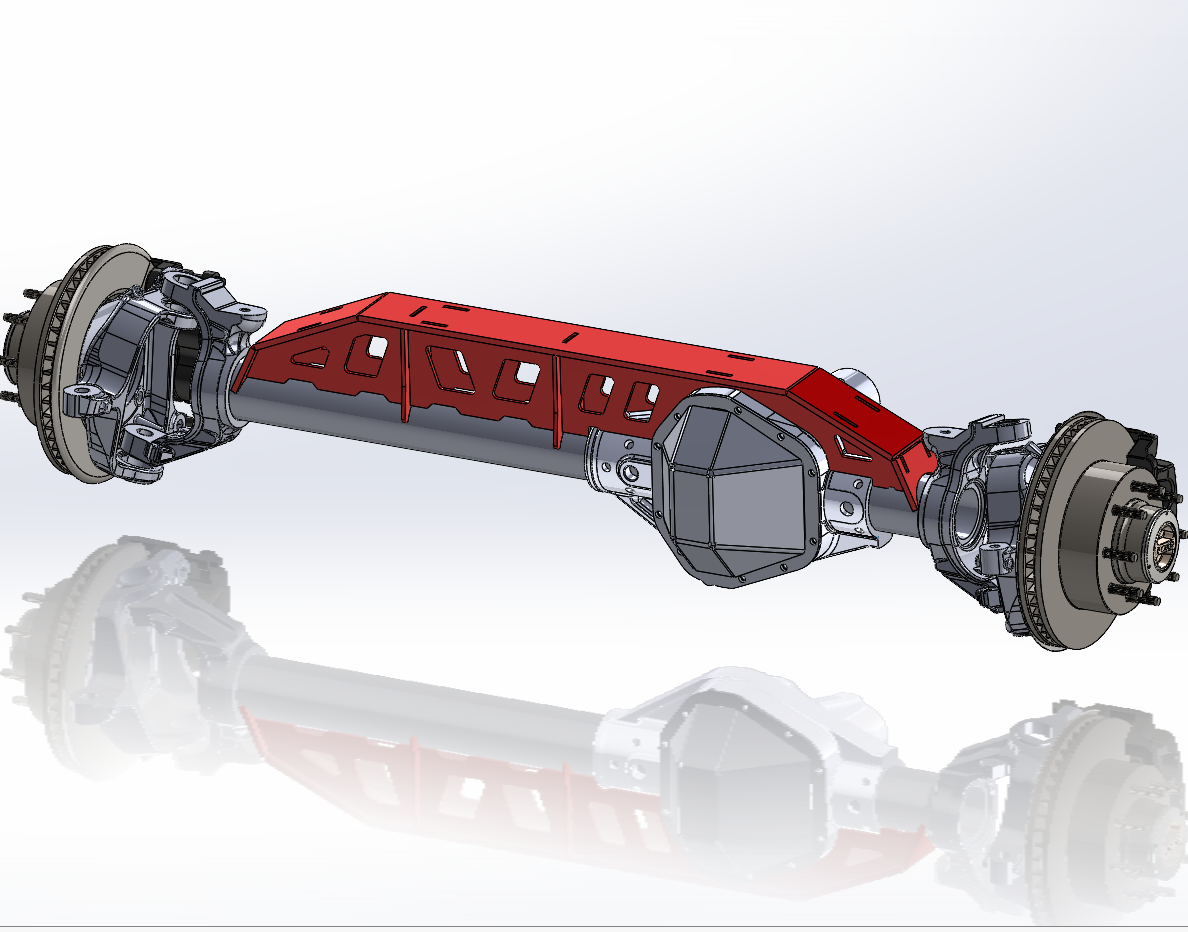

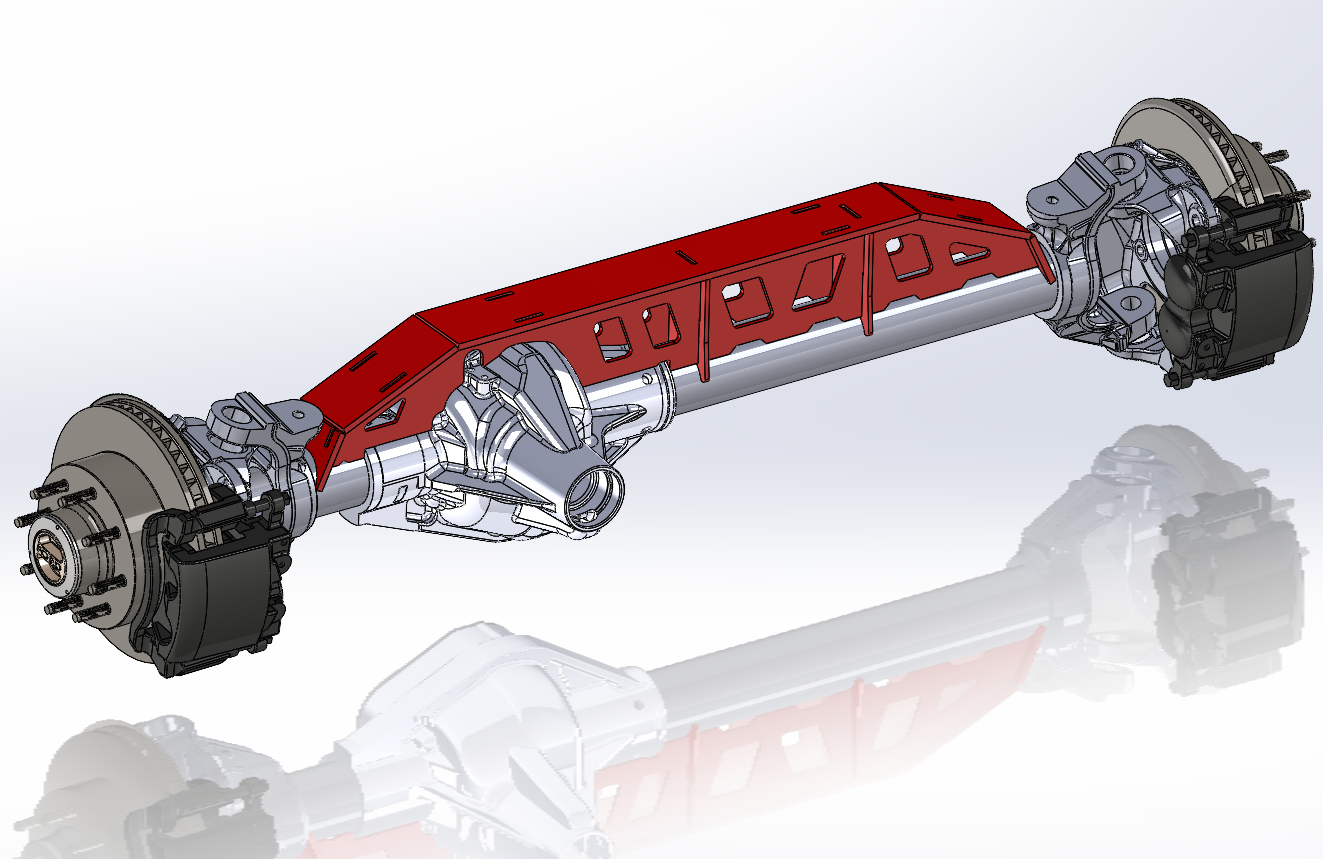

This heavy-duty full-height axle truss is designed to maximize strength and rigidity for high-load off-road applications. Built for Buggy builds, large tires, and hard use, this design prioritizes structural reinforcement of the axle tubes and center section.

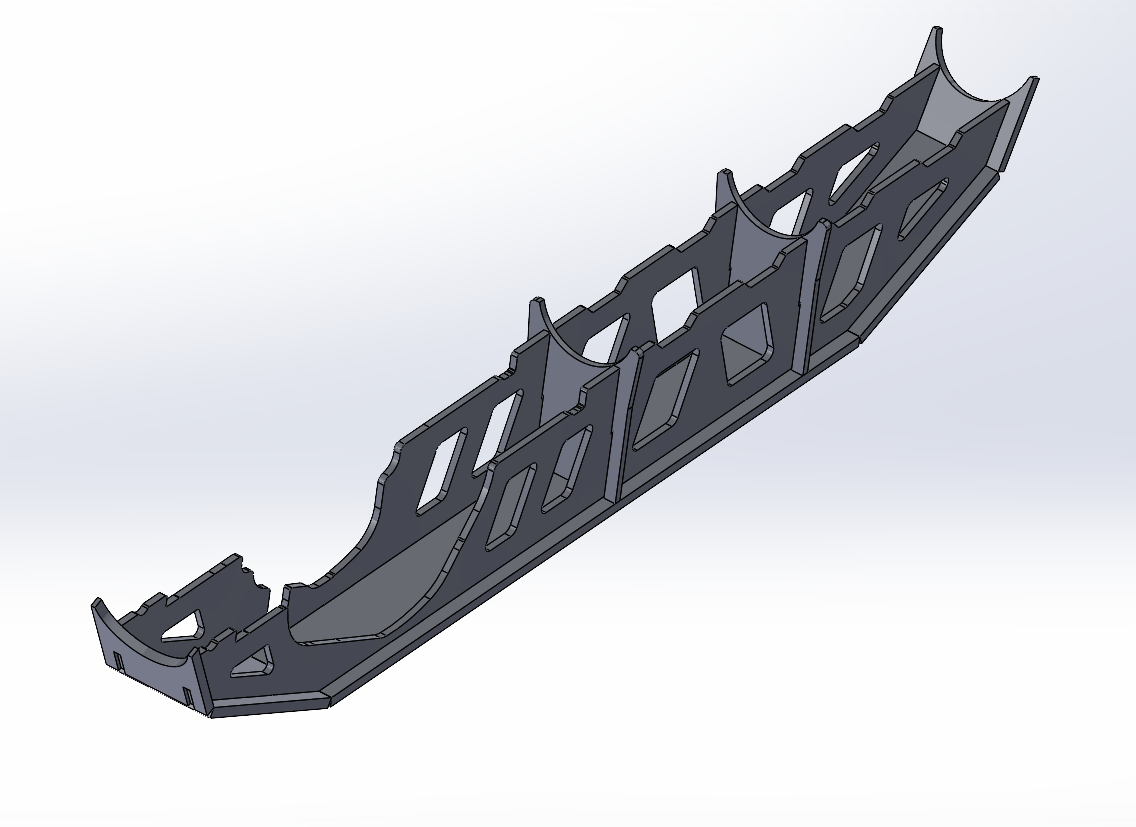

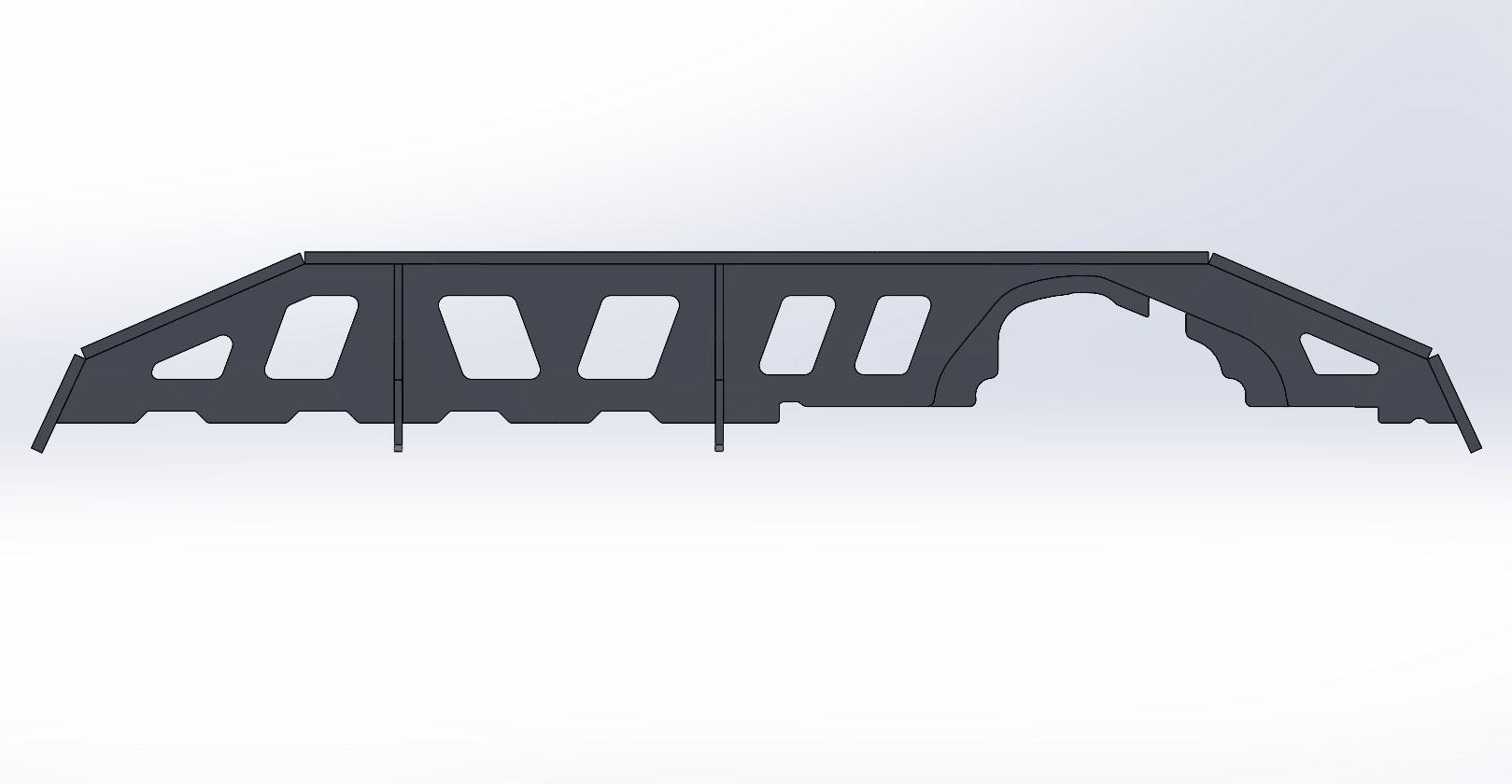

🔹 CNC-ready DXF files designed for plasma, laser, or waterjet cutting 🔹 Top plates designed for 3/8" steel for maximum strength 🔹 Front and rear plates designed for 1/4" steel 🔹 Separate DXF files provided for each material thickness 🔹 Full tab-and-slot construction — no bending required 🔹 Full-height design provides increased axle tube and center section reinforcement 🔹 Designed to fit tight around the Dana 60 center casting and weld directly to it 🔹 Minor trimming may be required due to casting variations 🔹 Suitable for coilovers, ORI struts, air shocks, and custom off-road suspension systems 🔹 Includes DXF files for the complete truss assembly with interlocking plates and gussets
⚠️ Installation Note To properly fit this truss, modification of the factory axle housing is required. Approximately 2" of the driver-side casting must be removed, including the factory upper and lower radius arm mounts. All components should be test-fit prior to final welding to account for axle casting variations.
These digital DXF files are intended for personal or commercial fabrication use. No physical truss, hardware, or materials are included with this listing.
