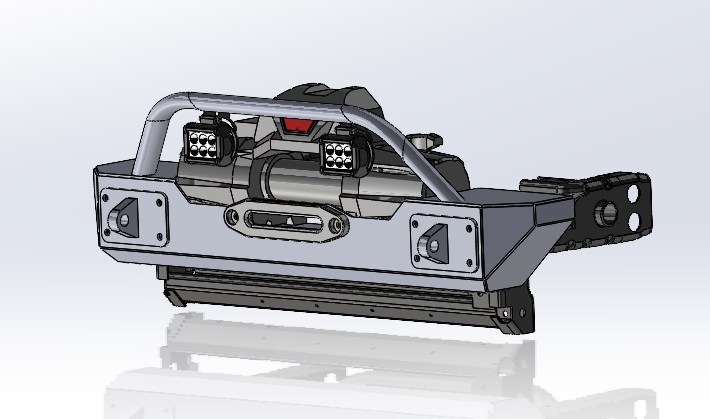

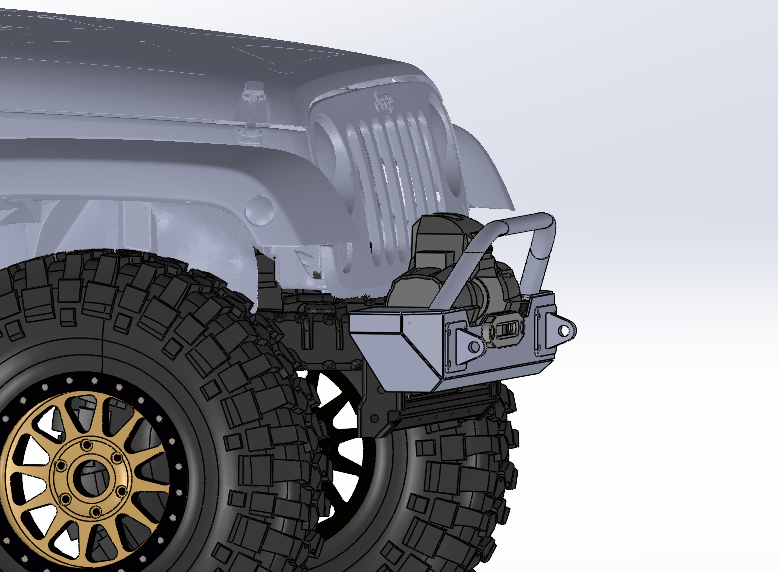

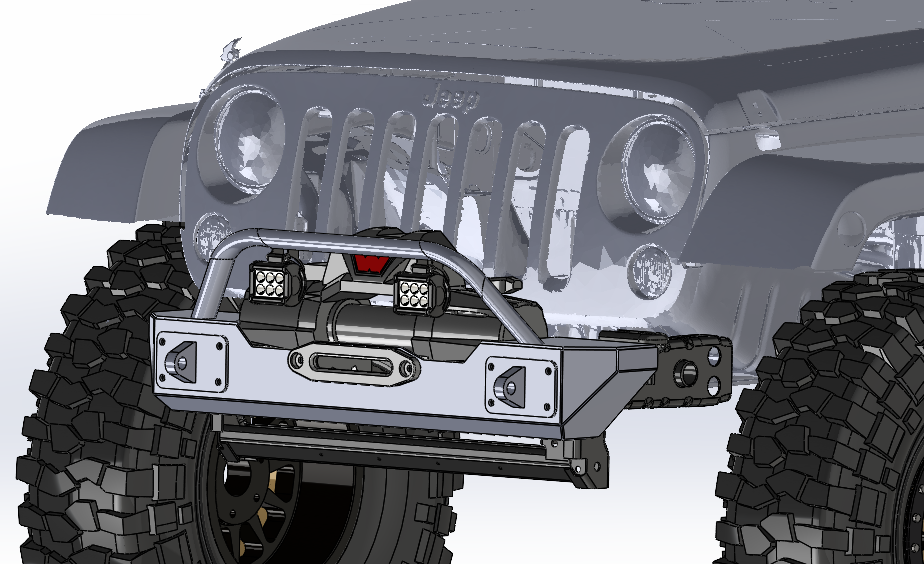

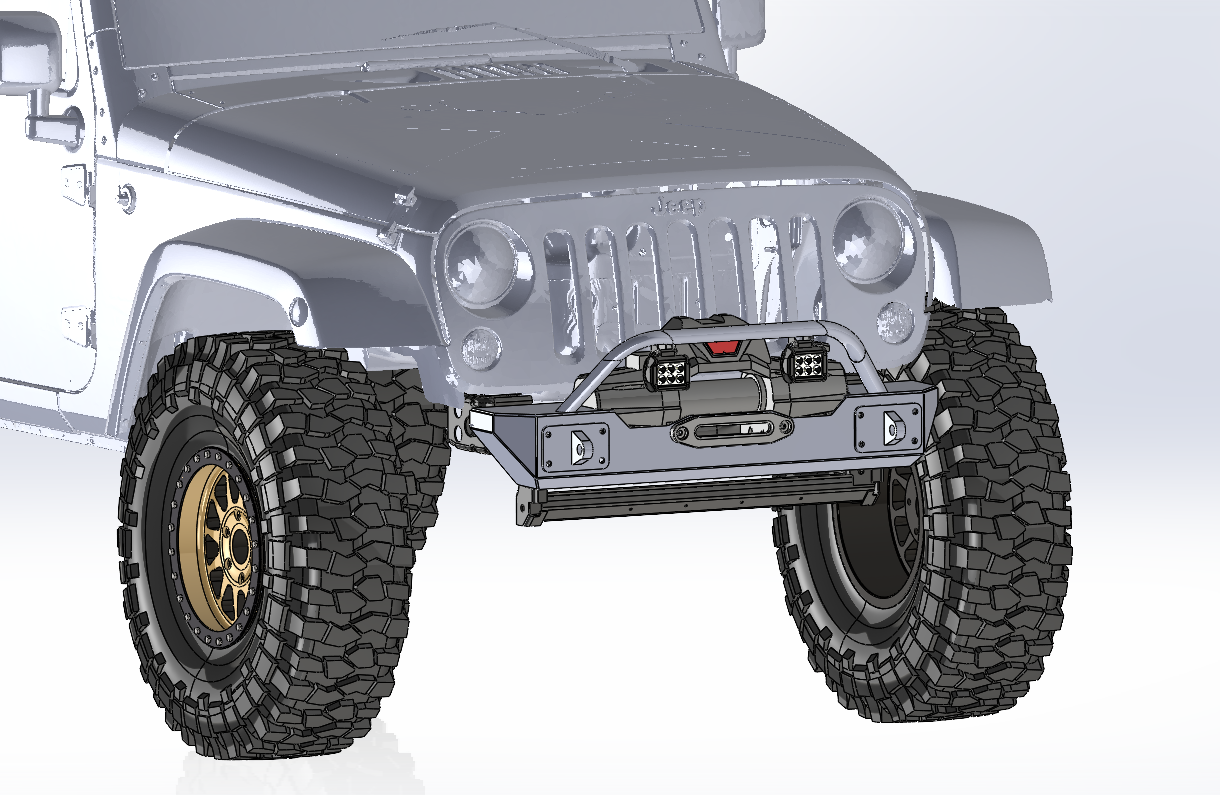

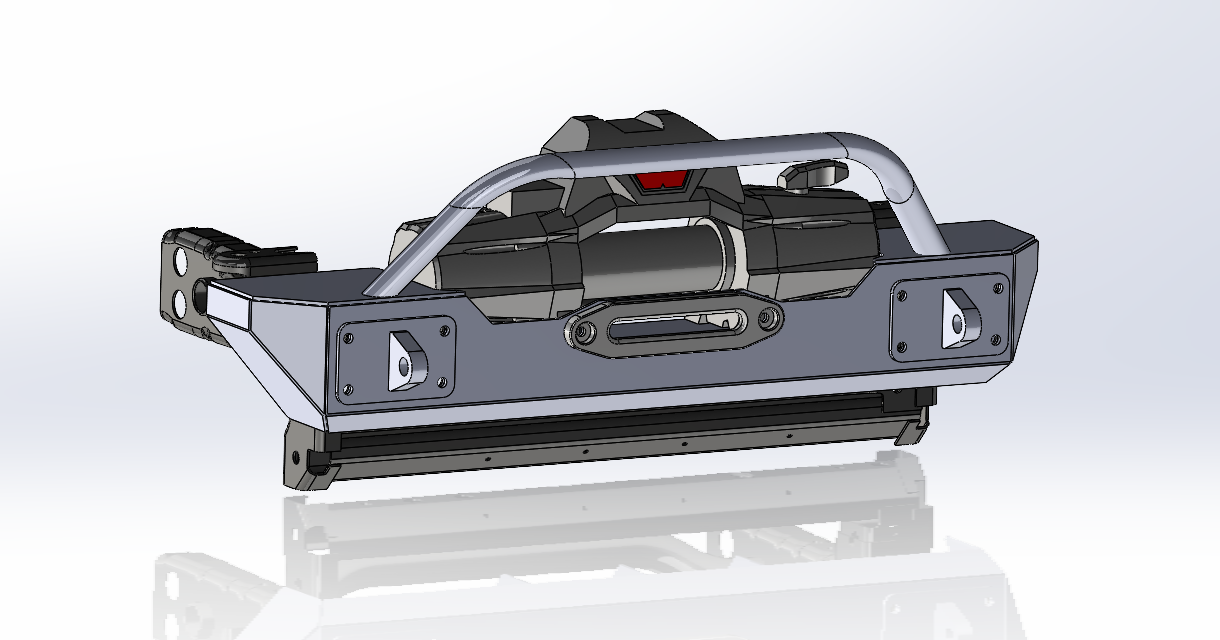

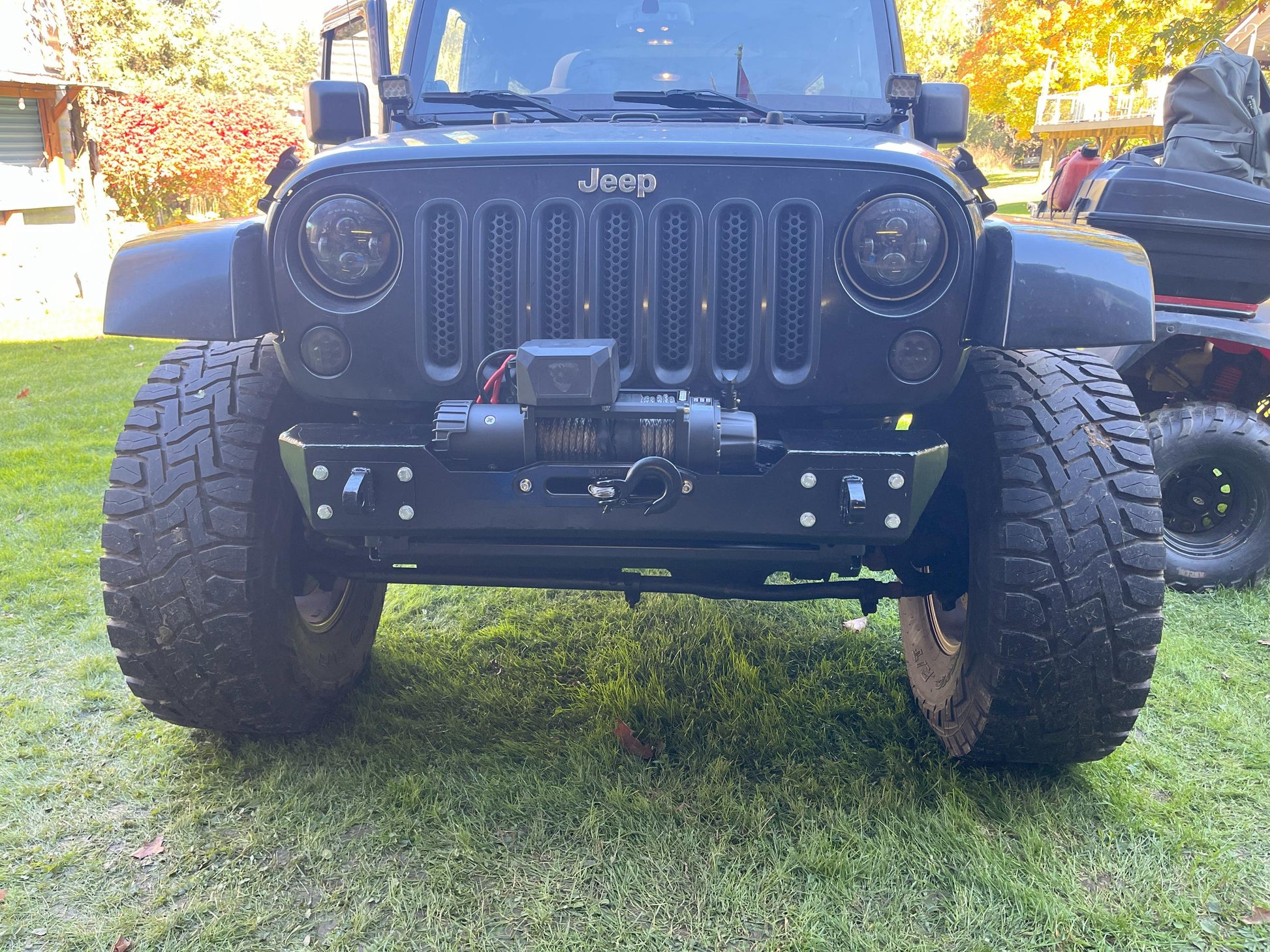

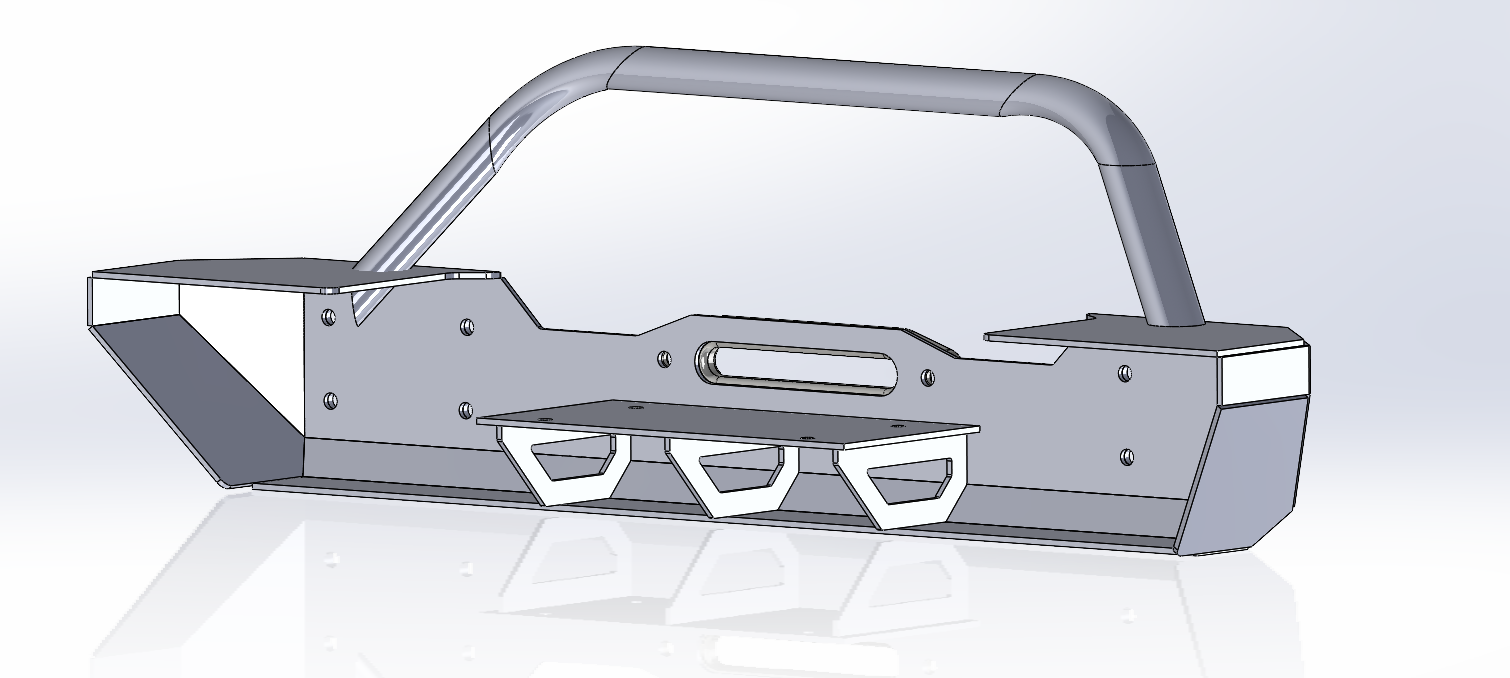

Jeep Wrangler JK Ultra Low Profile Front Winch Bumper – DXF Files
These DXF files allow you to fabricate a high-clearance, low-profile front winch bumper for the Jeep Wrangler JK. Designed for maximum approach angle and the smallest possible packaging without requiring a frame chop.
🔹 CNC-ready DXF files for plasma, laser, or waterjet cutting 🔹 High-clearance, low-profile design for 2007–2018 Jeep Wrangler JK 🔹 All components are flat-cut parts — no sheet metal bending required 🔹 Designed to be cut from 3/16" or 1/4" steel plate 🔹 Tow shackle mount files included (can be cut from thicker material if desired) 🔹 Winch-compatible — fits most common winches, including Warn Zeon 🔹 Easy, bolt-on installation — mounts to the factory frame with no modifications 🔹 2012–2018 models: no vacuum pump relocation required for most winch configurations
These DXF files are intended for personal or commercial fabrication use to produce physical bumpers. Files may not be shared, resold, or redistributed. No physical bumper, hardware, or materials are included with this listing.
