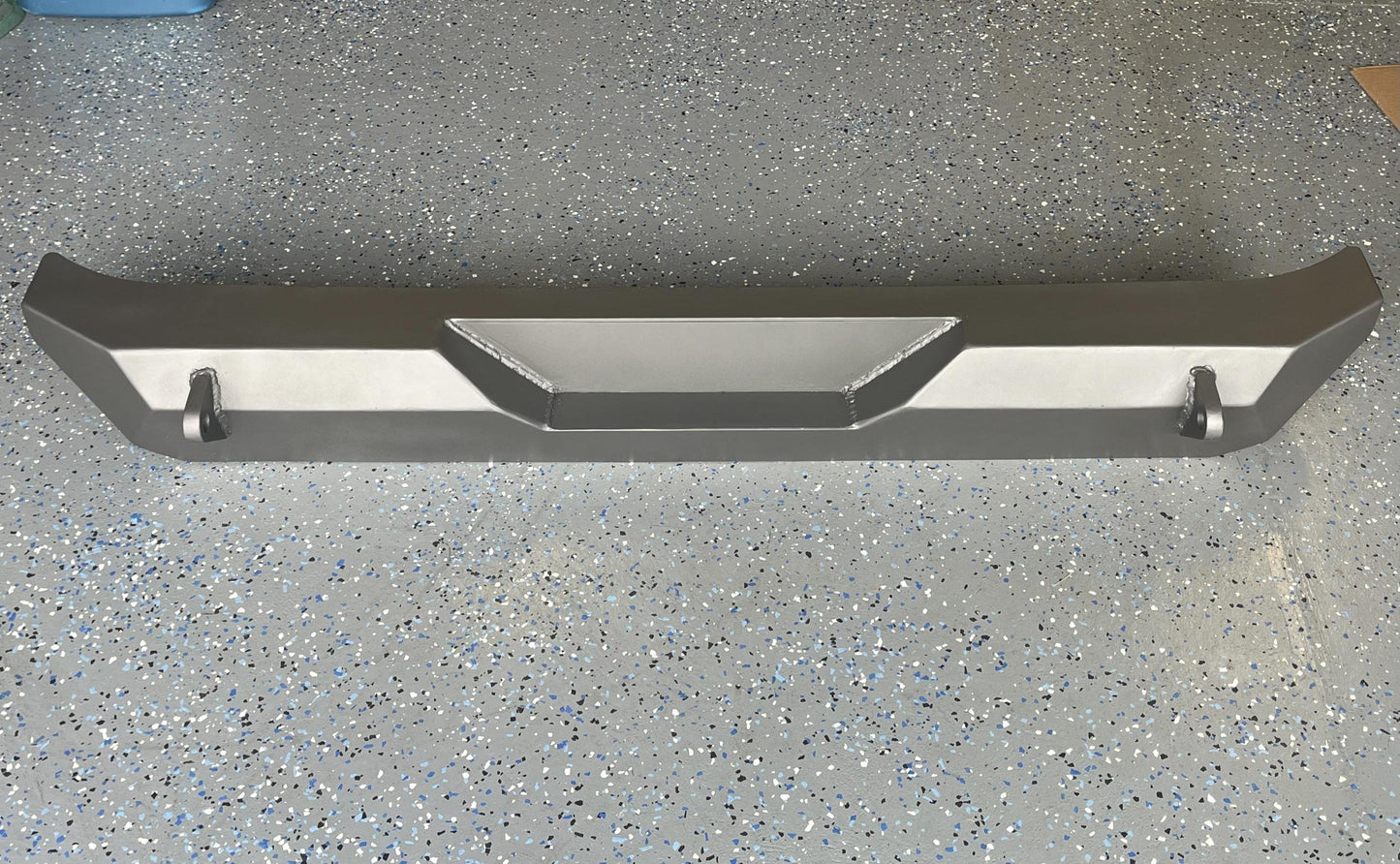

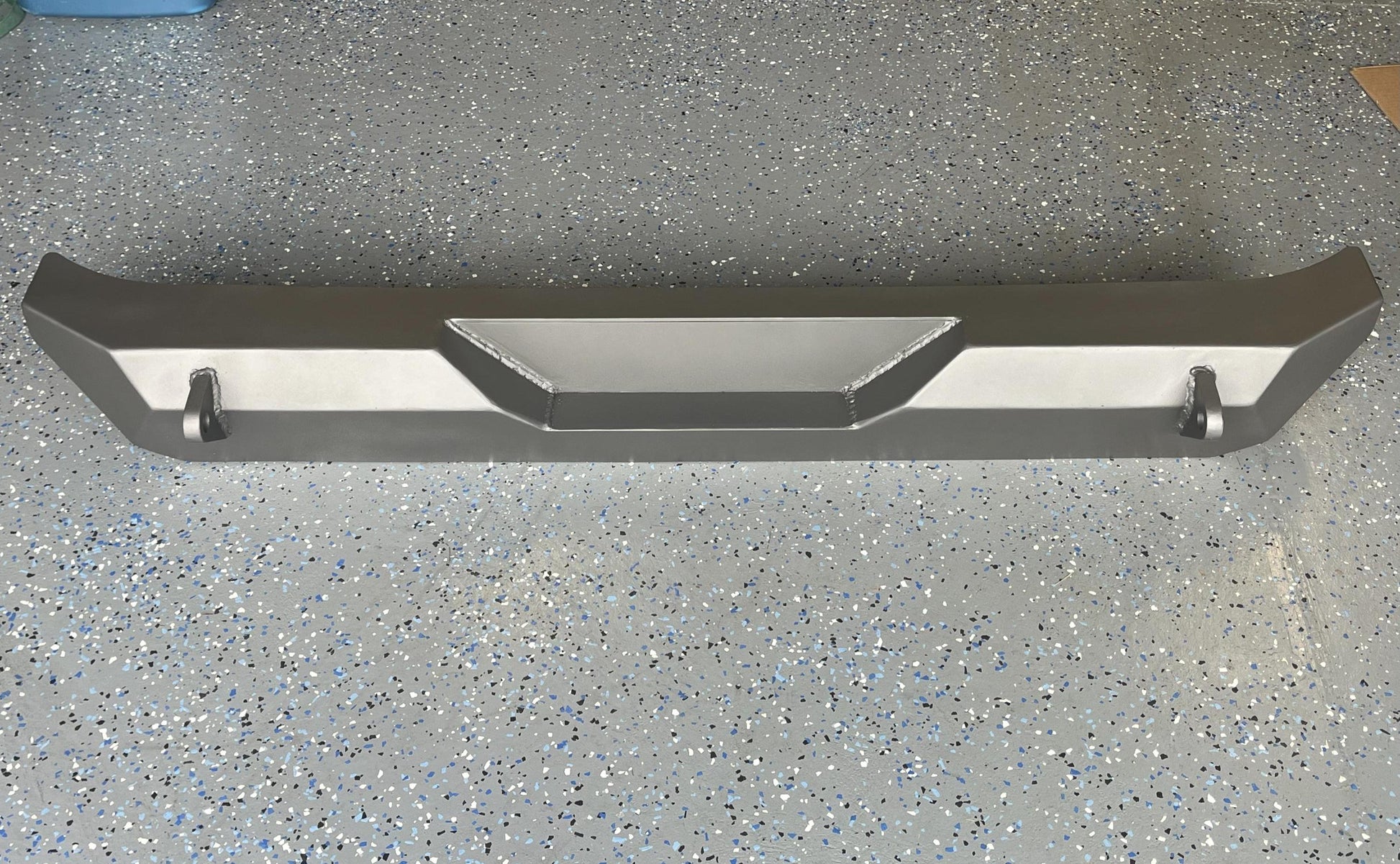

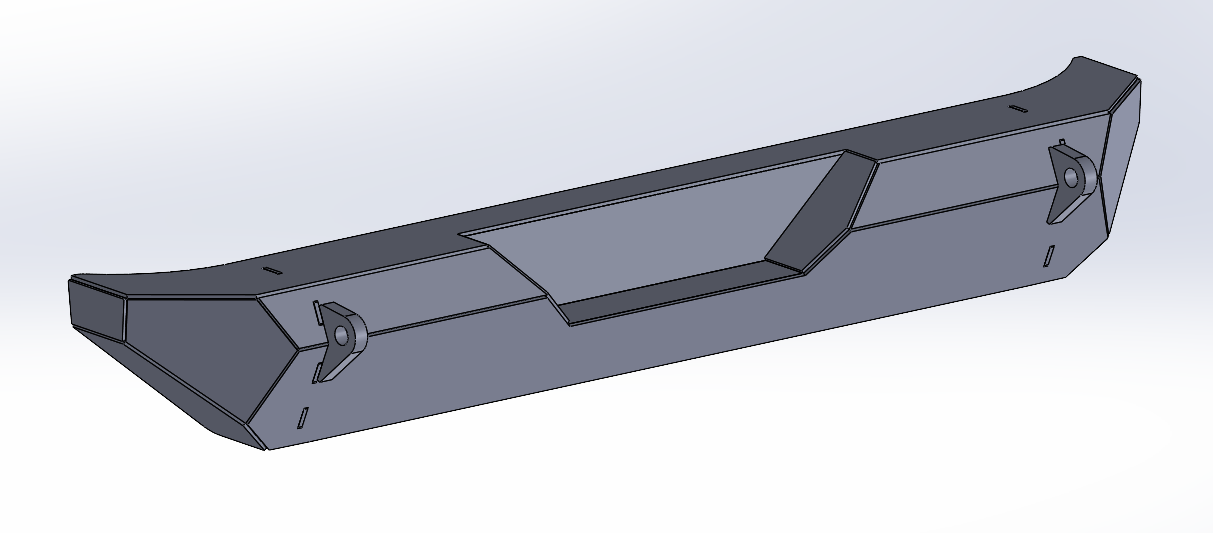

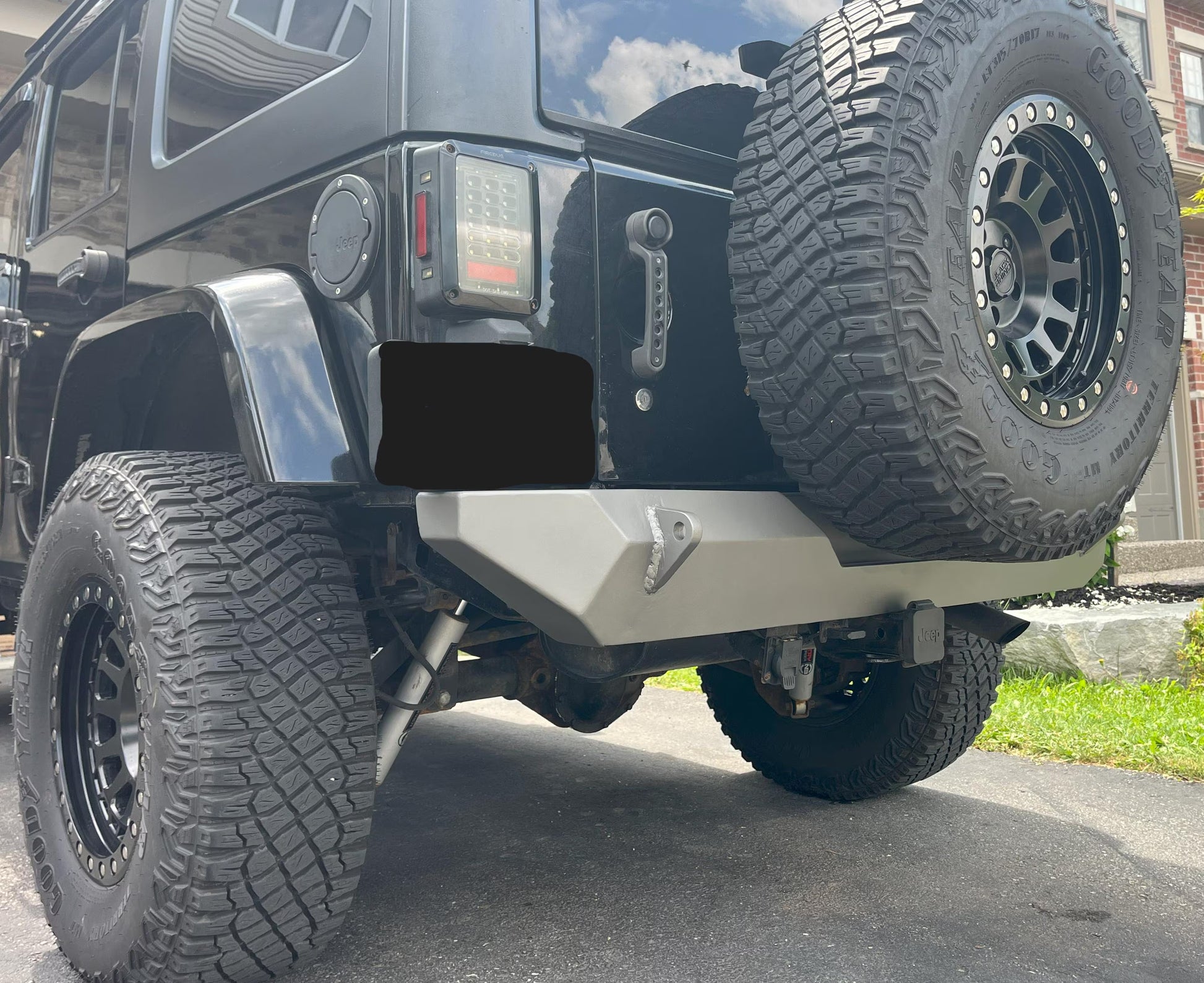

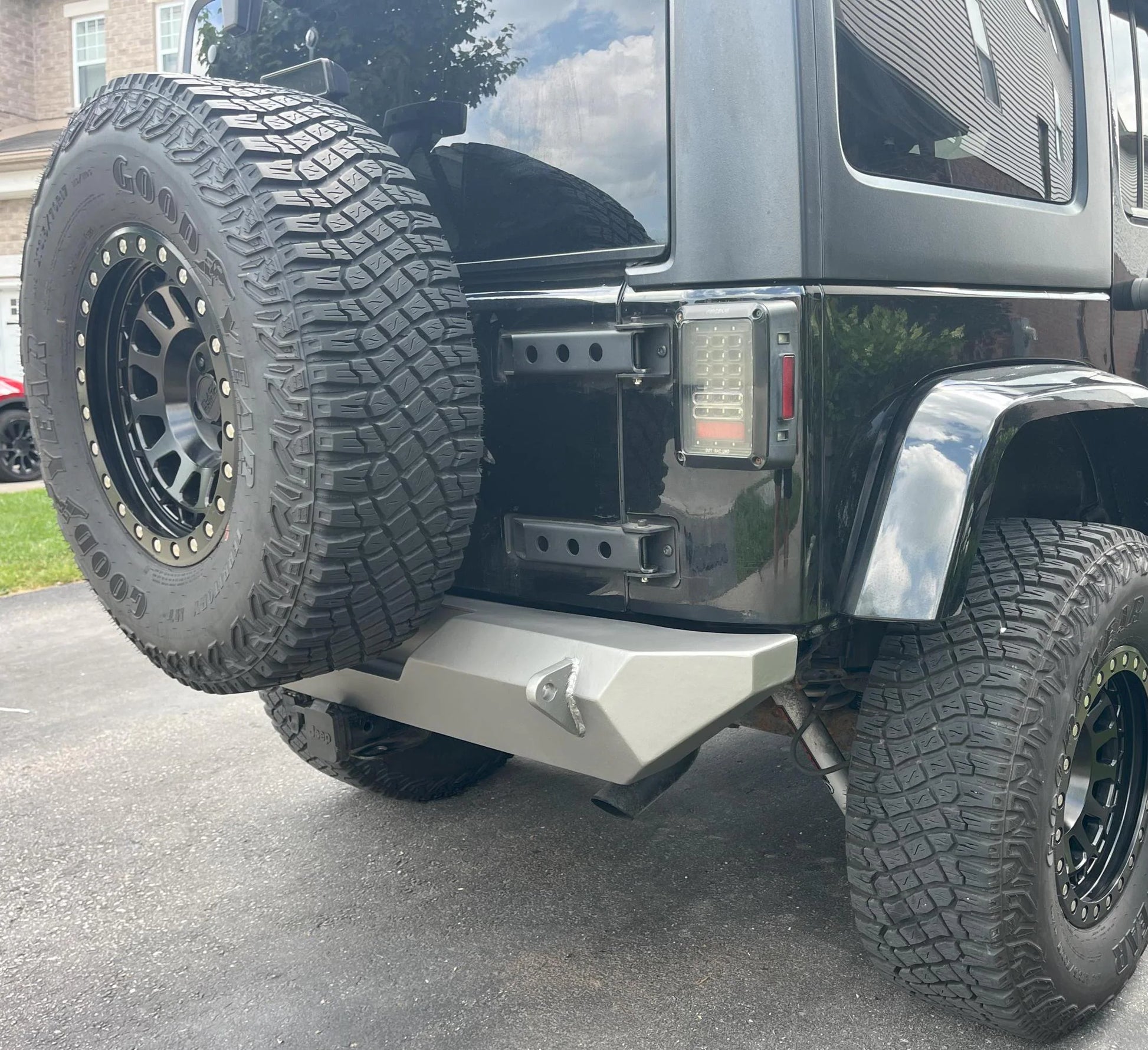

Jeep Wrangler JK Low Profile Rear Bumper – DXF Files

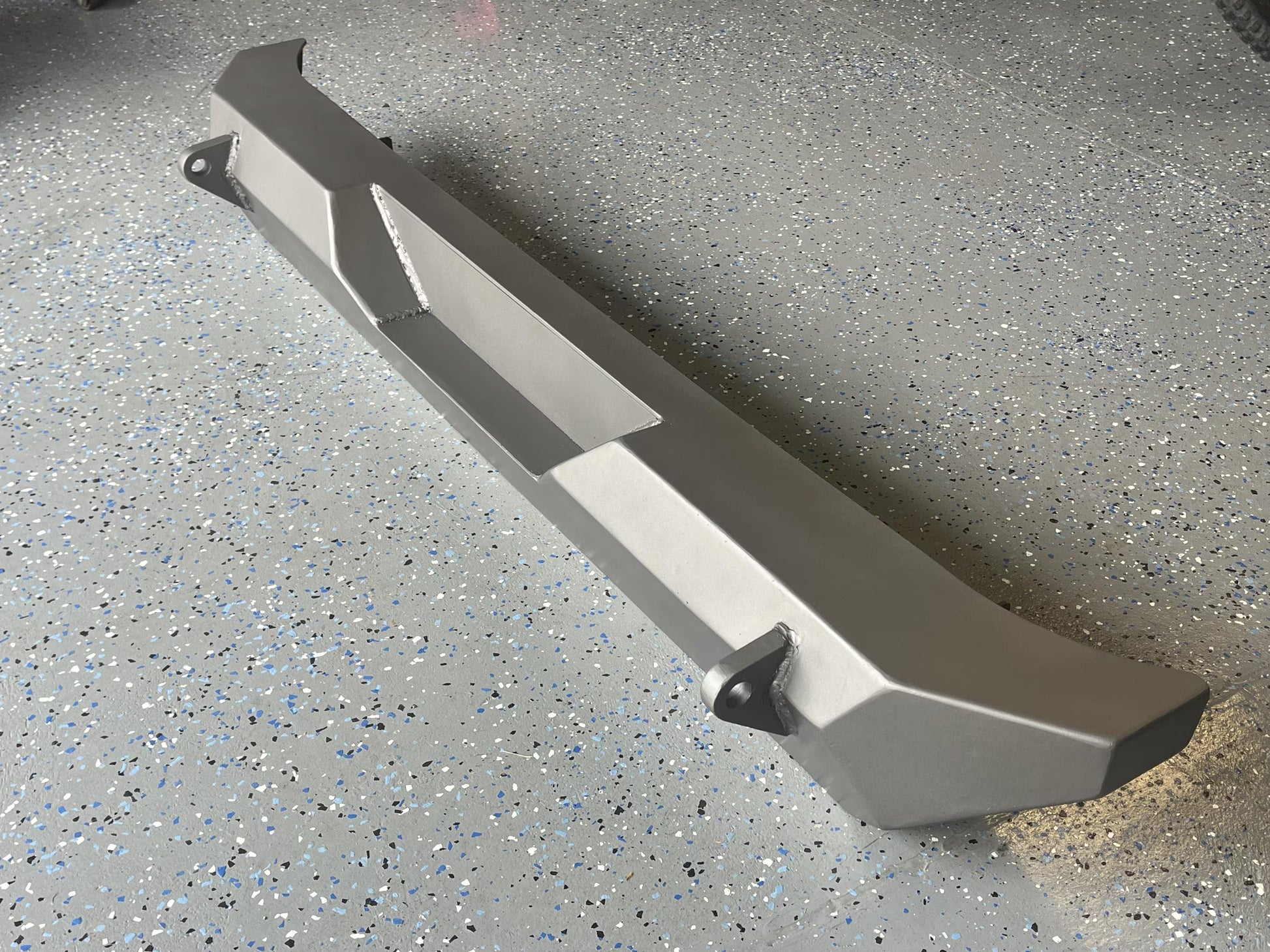

These DXF files allow you to fabricate a high-clearance, low-profile rear bumper for the Jeep Wrangler JK. Designed for strength, simplicity, and clean fitment.

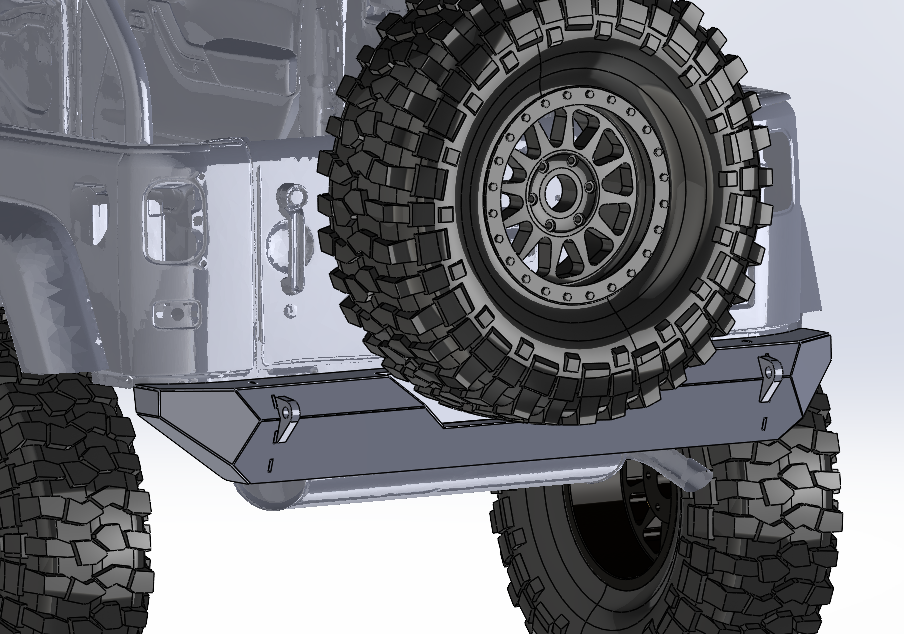

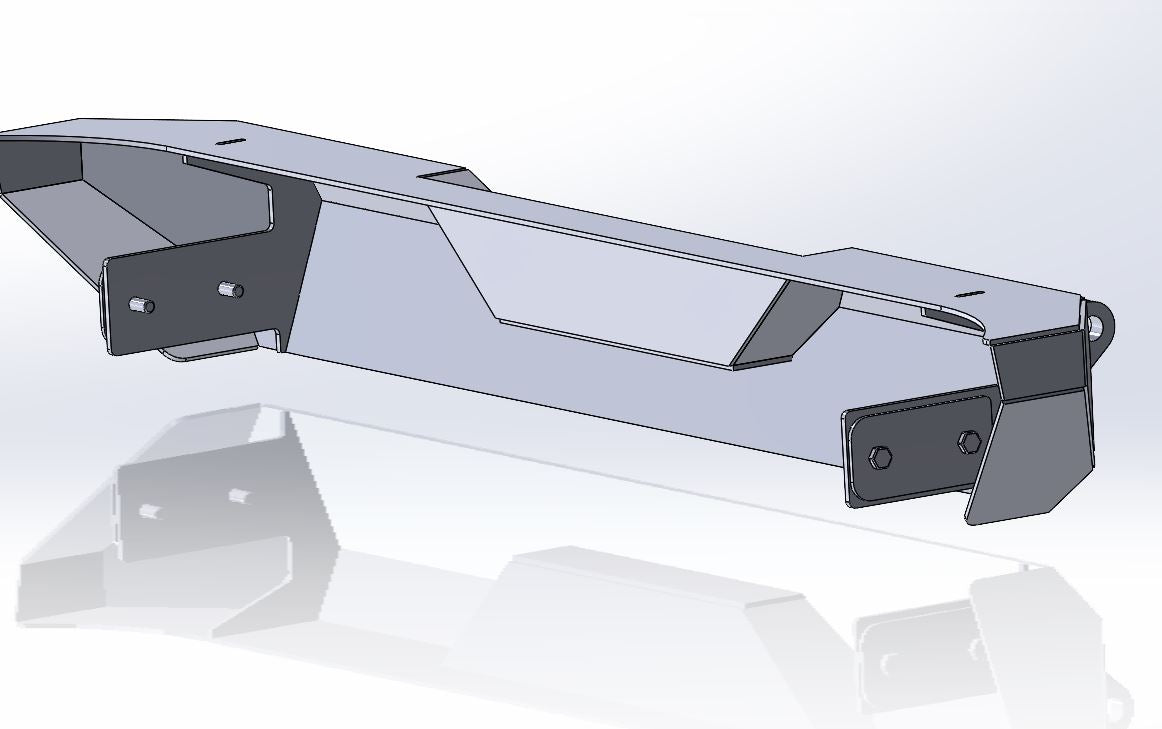

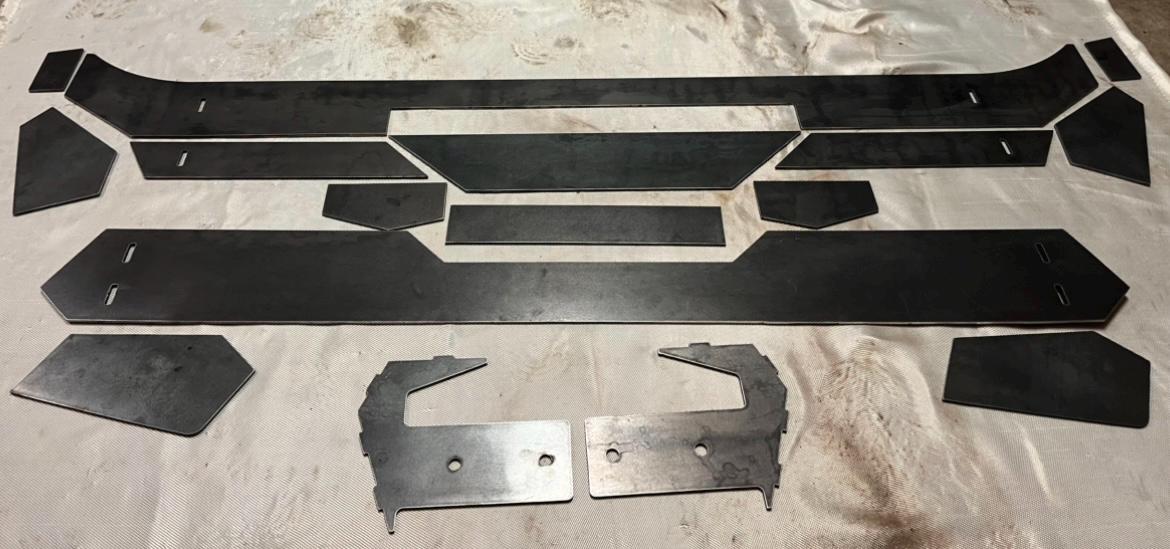

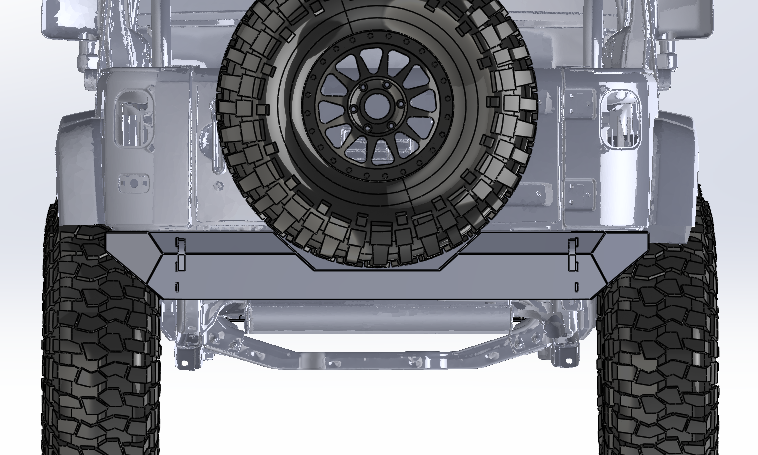

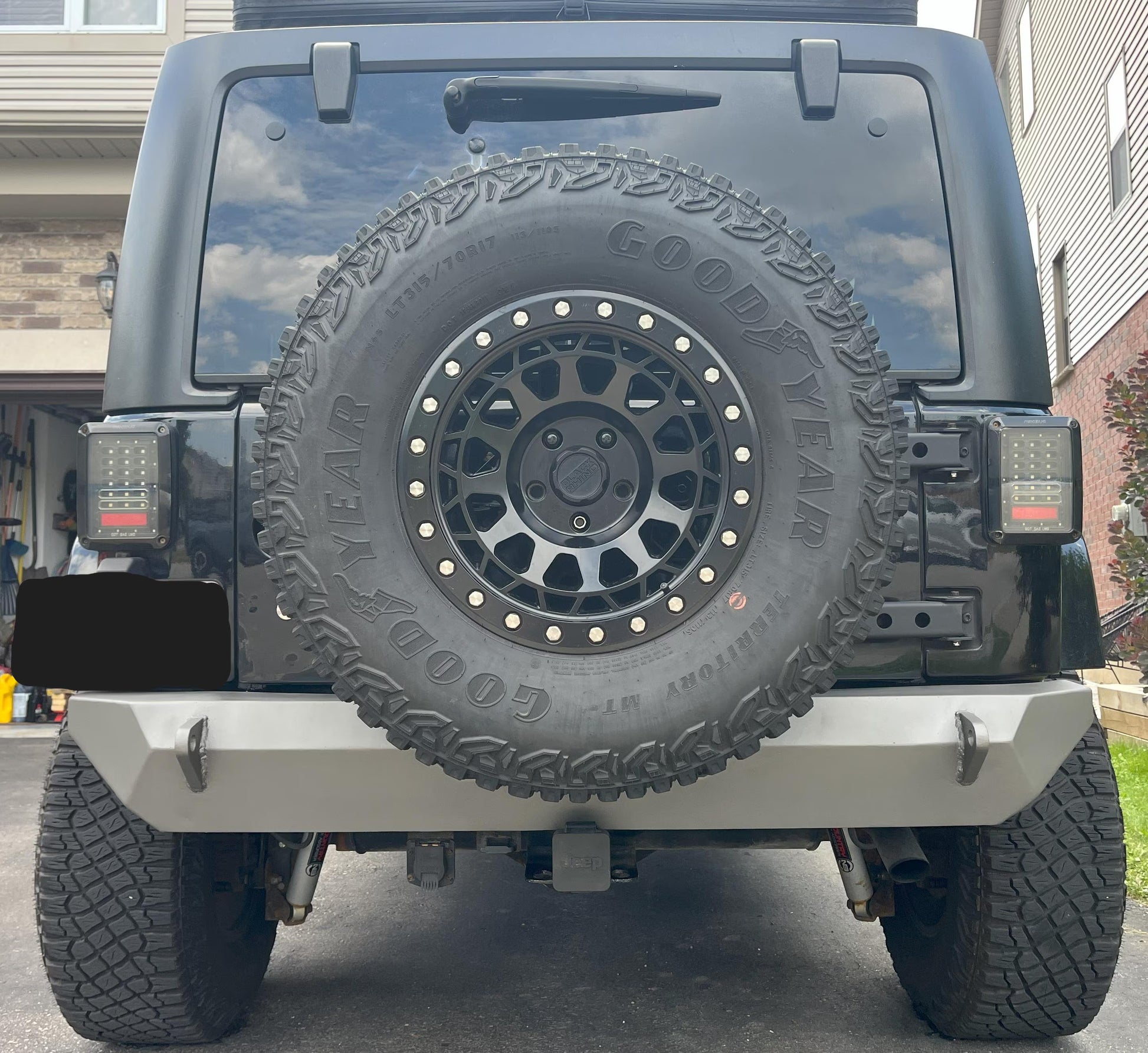

🔹 CNC-ready DXF files for plasma, laser, or waterjet cutting 🔹 High-clearance, low-profile design with cutout for spare tire clearance 🔹 All components are flat-cut parts — no complex bending required 🔹 Includes two cutting layouts: • Full-width layout for large-format tables • Shortened 4×4 layout with segmented long pieces so the entire bumper can be cut on a 4×4 plasma table using 3/16" steel 🔹 Clears a 35" spare tire on the factory tire carrier; 37" tire possible with an adjustable tire rack (37" shown in renderings) 🔹 Bolts directly onto 2007–2018 Jeep Wrangler JK 🔹 Designed to clear the factory JK trailer hitch 🔹 Designed to be cut from 3/16" steel • Frame-side mounting plates may optionally be separated and cut from 1/4" steel • Tow shackle mounts may be cut from 1/2"–1" steel, or doubled 3/8" plate, depending on builder preference
These DXF files are intended for personal or commercial fabrication use to produce physical bumpers. Files may not be shared, resold, or redistributed. No physical bumper, hardware, or materials are included with this listing.
