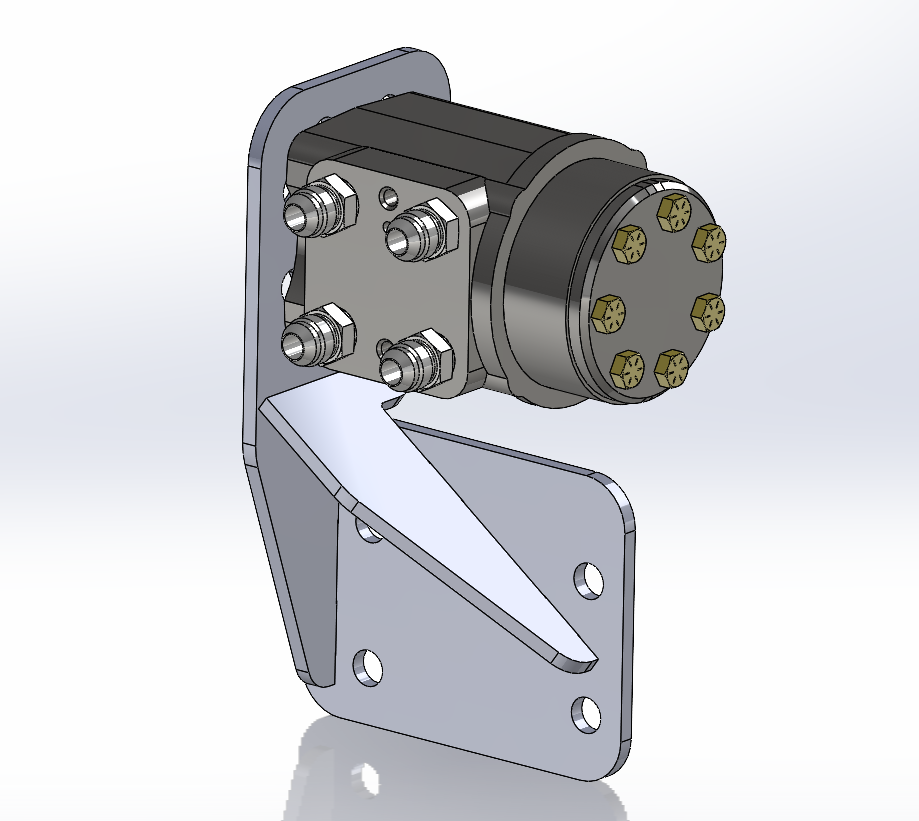

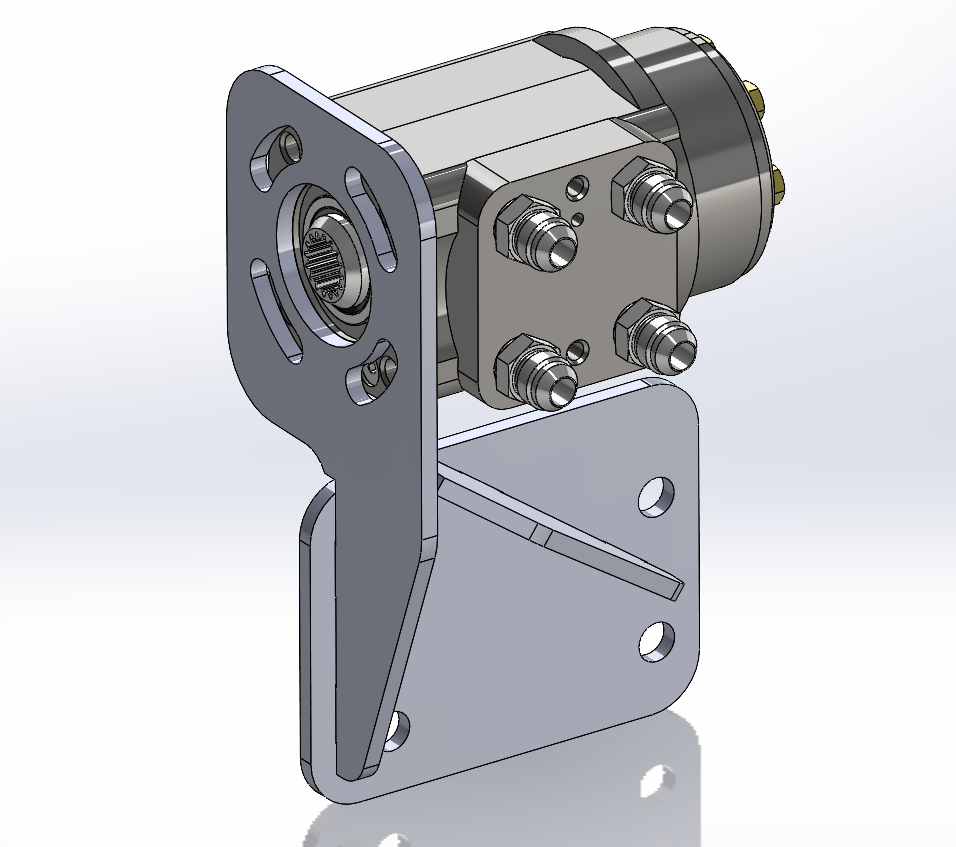

Jeep Wrangler JK PSC Orbital Valve Mount – DXF Files
Upgrading to full hydraulic steering on your Jeep JK / JKU? These DXF files allow you to cut and fabricate a clean, secure frame-side mount for a PSC-style orbital valve.

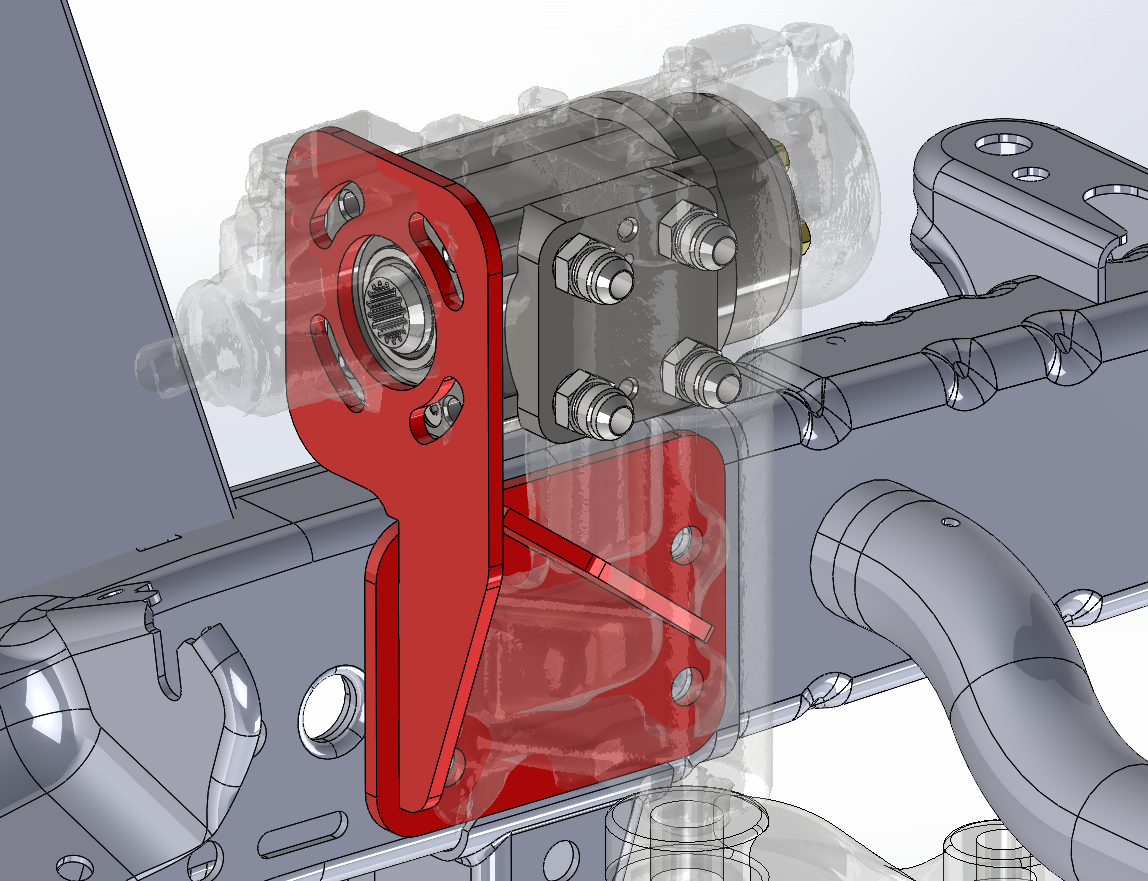

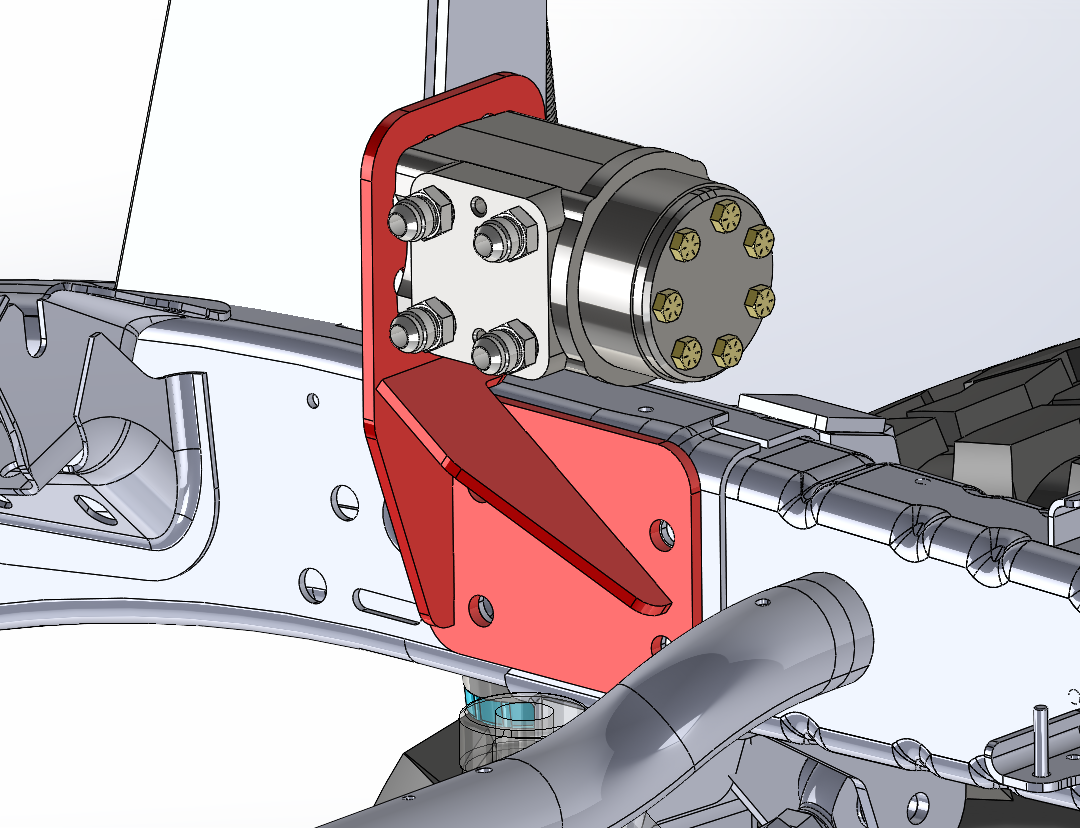

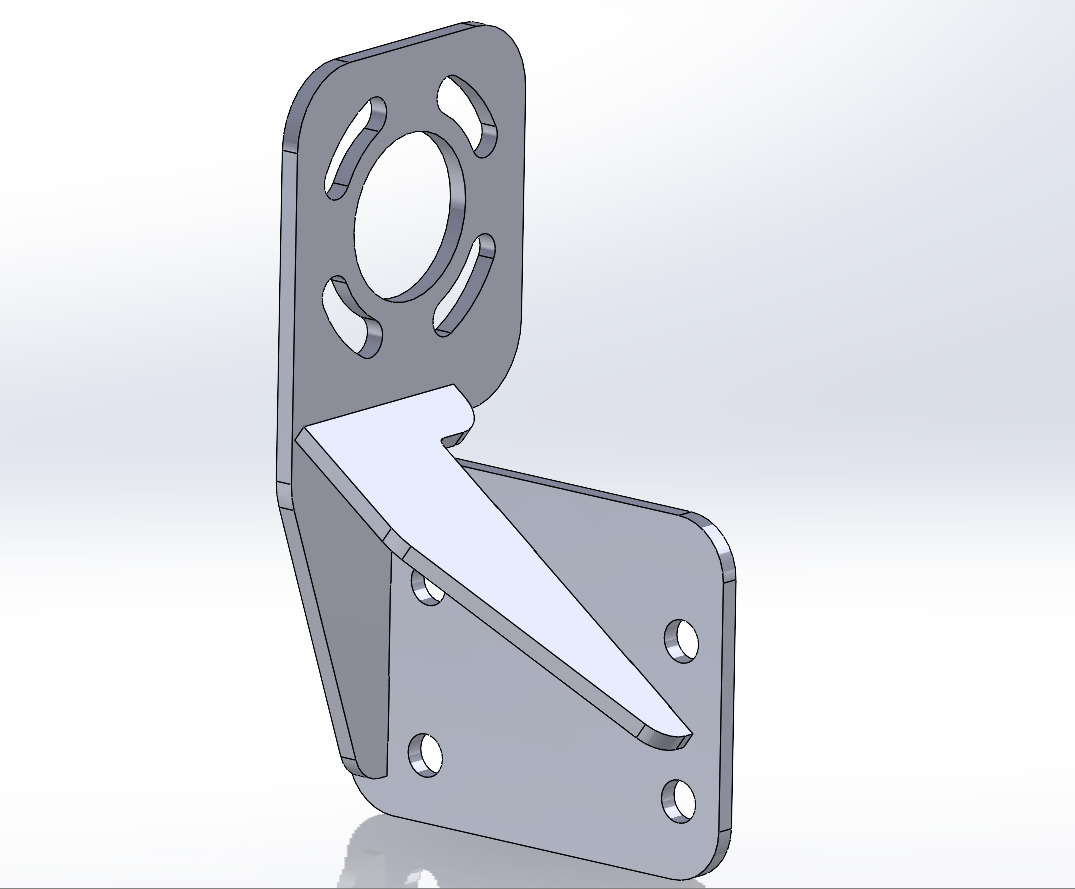

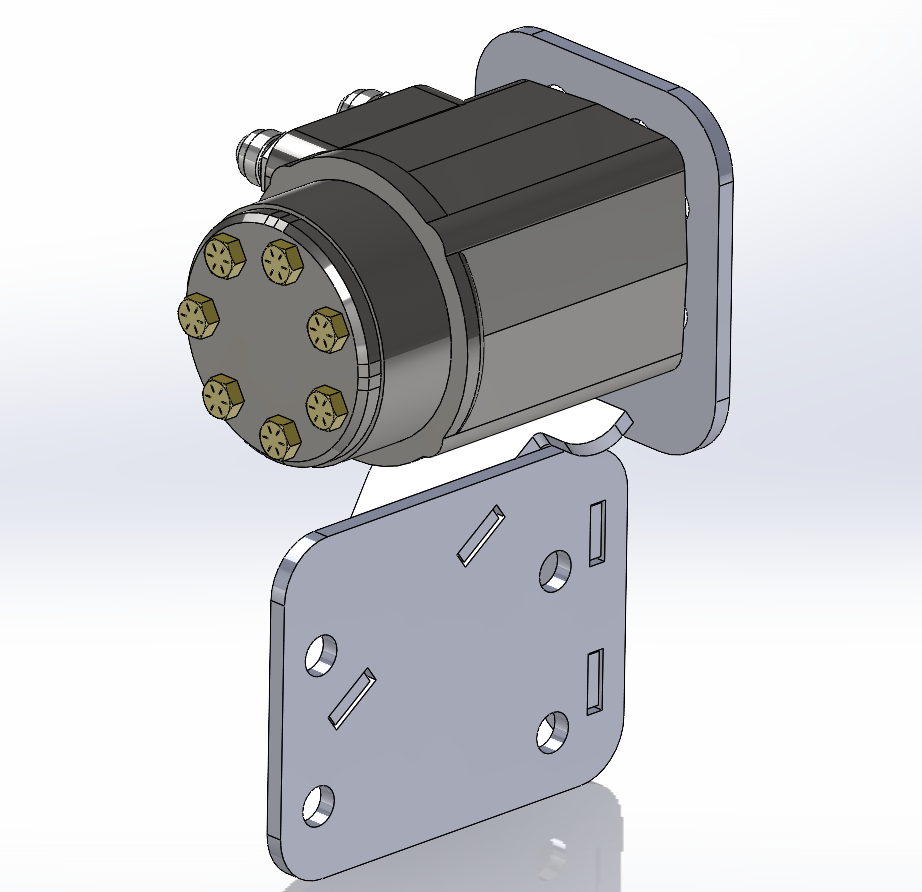

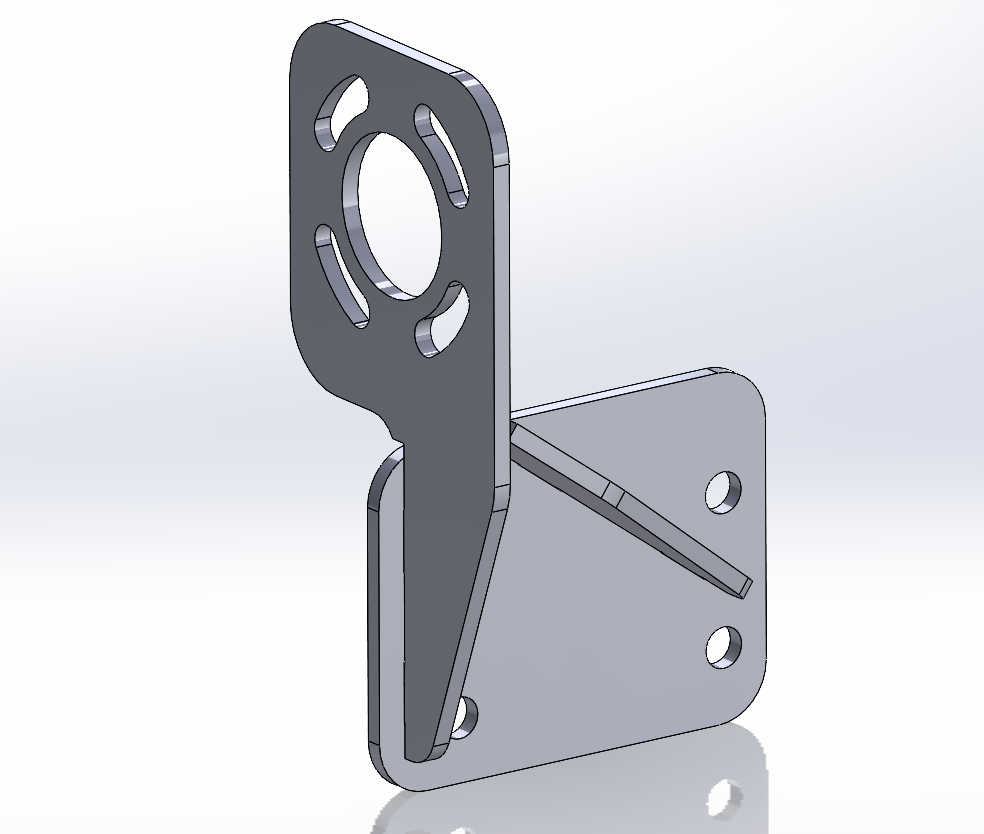

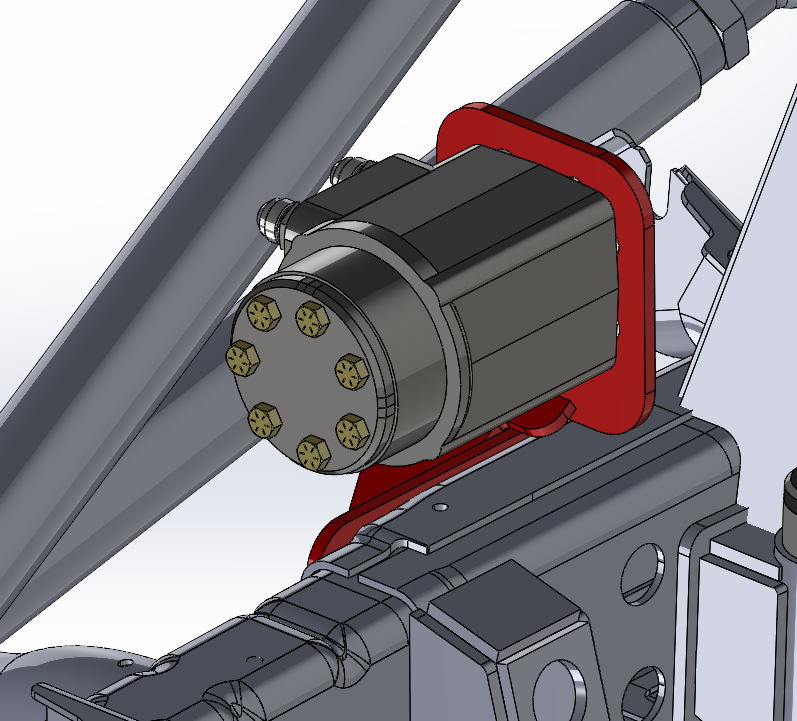

🔹 CNC-ready DXF files optimized for plasma, laser, or waterjet cutting from 1/4" steel 🔹 Full tab-and-slot construction for accurate alignment and easy assembly 🔹 Designed to mount PSC-style orbital valves in Jeep JK / JKU engine bays 🔹 Slotted mounting holes allow for rotational adjustment of the orbital valve for optimal hose routing and clearance 🔹 Compact, rigid design suited for full hydraulic steering conversions 🔹 Flat-cut design — no bending required
These digital DXF files include metric and standard files, and are intended for personal or commercial fabrication use. No physical mount, hardware, or materials are included with this listing.
